Remove/Install Flywheel/Drive Plate - AR03.30-P-8001MFI
Engine 260 in model 118, 177, 247 with transmission 724.1

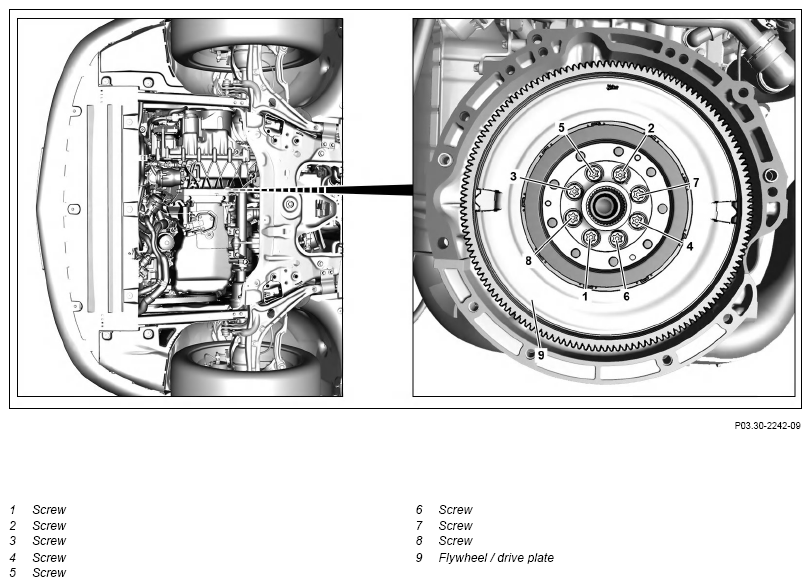

Fig 1: Flywheel/Drive Plate Components Location - Engine 260 In Model 247 With Transmission 724.1 (Shown On Model 177)
Shown on model 177
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Remove | |||
| 1 | Remove transmission. | AR27.10-P-0009MFA | |
| 2 | Install retaining lock for crankshaft/starter ring gear. | AR03.30-P-5000MFC | |
| 3 | Loosen screws (1 - 8). | Do not use an impact wrench or similar compressed air tool to loosen the screws (1 - 8). Otherwise, damage to the crankshaft will occur. |
|
| 4 | Remove screws (1 - 8) and remove flywheel/drive plate (9). | ||
| 5 | Check rear radial shaft sealing ring for damage. | If there are problems, ↓ Replace rear radial shaft sealing ring. |
|
| AR03.20-P-3064MFC | |||
| Install | |||
| 6 | Position flywheel/drive plate (9) on crankshaft. | ||
| 7 | Tighten screws (1 - 8) slightly by hand and tighten in numerical sequence as per the illustration. | ||
| *BA03.30-P-1003-01S | |||
| 8 | Remove retaining lock for crankshaft/starter ring gear. | AR03.30-P-5000MFC | |
| 9 | Install transmission. | AR27.10-P-0009MFA |
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 260 | ||
|---|---|---|---|---|
| BA03.30-P-1003-01S | Bolt, two-mass flywheel/drive plate to crankshaft | Stage 1 | Nm | 45 |
| Stage 2 | ∠° | 90 | ||
