Remove/Install Coolant Pump - AR20.10-P-1271MFC

Engine 260 in model 118, 177, 247

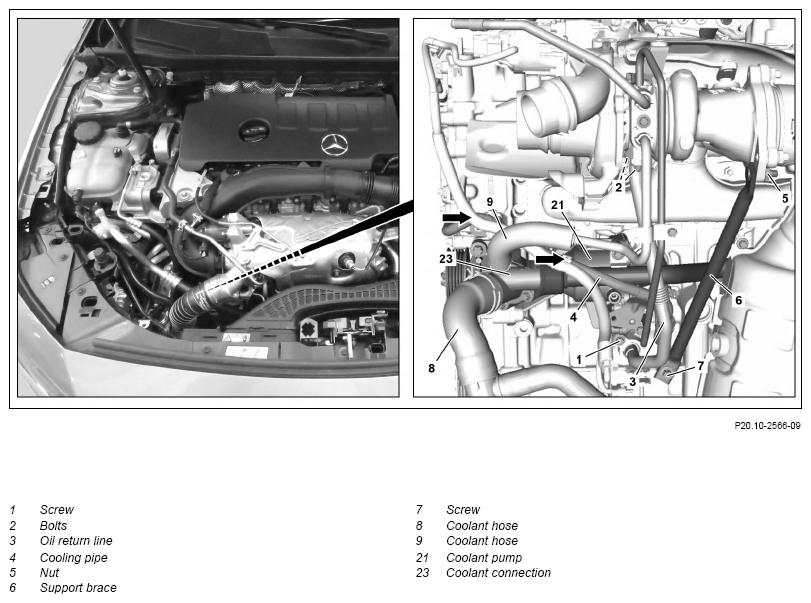

Fig 1: Coolant Pump Components Location - Engine 260 In Model 247 (Shown On Model 177)
G14688531Courtesy of MERCEDES-BENZ USA

Shown on model 177 with engine 260 without code M016 (performance-enhanced engine)

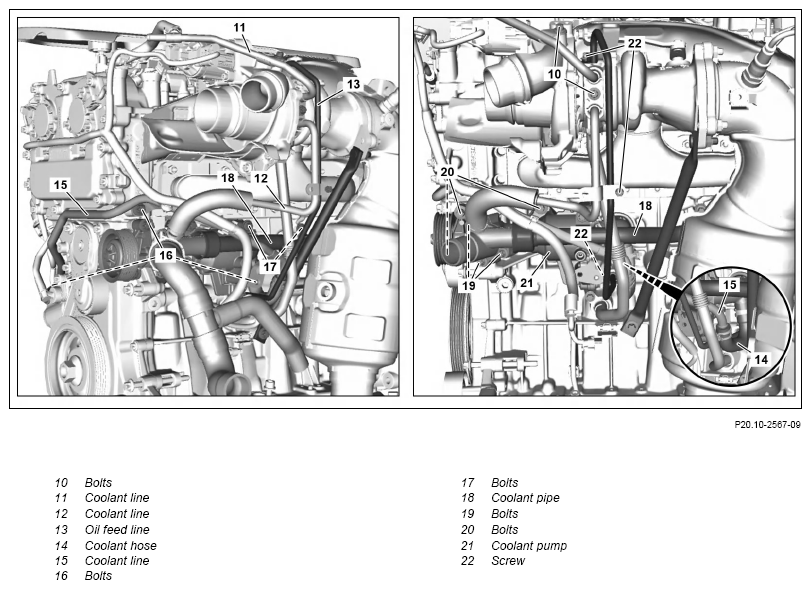

G14688532Courtesy of MERCEDES-BENZ USA

Shown on engine without code M016 (performance-enhanced engine)

WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. AS20.00-Z-0001-01A
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the area of mechanical components when moving components. AS00.00-Z-0009-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on coolant level   AH20.00-P-1142-01CW
REMOVINGINSTALLING Remove/install
1 Drain off coolant.   AR20.00-P-1142MFC
2 Remove the alternator (G2).   AR15.40-P-5032MFC
3 Remove heat shield at exhaust gas turbocharger.   AR09.40-P-6045MFC
4 Remove lambda sensor downstream of catalytic converter (G3/1).   AR07.04-P-0085MFC
5 Remove screws (1, 2), remove oil return feed line (3) and seal openings with suitable stop plugs. INSTALLATION IMPORTANT Replace seals.
    TORQUE SPECIFICATION Bolt, feed line/return line to turbocharger/crankcase *BA09.40-P-1002-02G
    SPECIAL TOOL Record plug Fig 3
6 Unclip electrical wiring harness at cooling pipe (4) (arrows). If cable attachments are damaged,

Replace cable attachments.

7 Remove nut (5), screw (7) and support (6). TORQUE SPECIFICATION Bolt, turbocharger support brace to crankcase *BA09.40-P-1005-02G
    TORQUE SPECIFICATION Nut, turbocharger support brace to turbocharger *BA09.40-P-1004-02G
8 Remove coolant hose (8) at coolant connection (23) and cooler, place to one side and seal using suitable protective covers. SPECIAL TOOL Set of protective covers Fig 4
    SPECIAL TOOL Hose clamp pliers Fig 2
9 Remove coolant hose (9) at coolant connection (23) and seal openings using suitable protective covers. SPECIAL TOOL Hose clamp pliers Fig 2
    SPECIAL TOOL Set of protective covers Fig 4
10 Remove screws (10, 22) of coolant lines (11, 12) and oil feed line (13) at exhaust gas turbocharger, bracket and crankcase. TORQUE SPECIFICATION Bolt, coolant return line to oil line *BA09.40-P-1003-02G
    TORQUE SPECIFICATION Bolt, feed line/return line to turbocharger/crankcase *BA09.40-P-1002-02G
11 Remove coolant lines (11, 12), oil line (13) and seal exposed openings with suitable stop plugs. INSTALLATION IMPORTANT Replace seals.
    SPECIAL TOOL Record plug Fig 3
12 Remove coolant hose (14) from coolant line (15), seal with suitable stop plugs and protective covers. SPECIAL TOOL Set of protective covers Fig 4
    SPECIAL TOOL Record plug Fig 3
    SPECIAL TOOL Hose clamp pliers Fig 2
13 Remove screws (16) at coolant line (15) at cylinder head, water pump and at crankcase and place to one side. TORQUE SPECIFICATION Bolt, feed pipe to coolant pump *BA20.10-P-1003-01AC
14 Remove screws (17) of coolant pipe (18) at crankcase and water pump. TORQUE SPECIFICATION Bolt, feed pipe to coolant pump *BA20.10-P-1003-01AC
15 Remove screws (19) at coolant connection (23). TORQUE SPECIFICATION Bolt, ball valve to coolant pump *BA20.10-P-1002-01AC
16 Place coolant connection (23) with coolant pipe (18) to one side. NOTES
Do not press coolant connection (23) too far to side.
Coolant pipe (18) will otherwise be damaged.
INSTALLATION IMPORTANT Replace seals.
INSTALLATION IMPORTANT Clean sealing surfaces.

17 Remove screws (20) at coolant pump (21). TORQUE SPECIFICATION Screw, coolant pump to timing case/crankcase/oil pan *BA20.10-P-1001-01AC
18 Remove coolant pump (21) from crankcase, collect escaping coolant with suitable container and seal openings with suitable means. INSTALLATION IMPORTANT Replace seals.
    INSTALLATION IMPORTANT Clean sealing surfaces.
19 Remove coolant hose (14) from coolant pump (21). If coolant pump (21) is replaced.
20 Install in the reverse order.
WARNING Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
21 Perform engine test run and check engine cooling system in area of water pump for leaks.   AR20.00-P-1010MFD
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1002-02G Bolt, feed line/return line to turbocharger/crankcase Stage 1 Nm 8
Stage 2 ∠° 60
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1003-02G Bolt, coolant return line to oil line Nm 5
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1004-02G Nut, turbocharger support brace to turbocharger Nm 30
TURBOCHARGER

Number Designation Engine 260
BA09.40-P-1005-02G Bolt, turbocharger support brace to crankcase Stage 1 Nm 15
Stage 2 ∠° 90
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engine 260
BA20.10-P-1001-01AC Screw, coolant pump to timing case/crankcase/oil pan Nm 20
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engine 260
BA20.10-P-1002-01AC Bolt, ball valve to coolant pump Nm 10
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engine 260
BA20.10-P-1003-01AC Bolt, feed pipe to coolant pump Nm 10
Fig 2: Identifying Hose Clamp Pliers (454 589 00 37 00)
G12939525Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Set Of Protective Covers (001 589 01 91 00)
G13668947Courtesy of MERCEDES-BENZ USA
