Remove/Install Charge Air Pressure And Temperature Sensor Upstream Of Throttle Valve - AR09.41-P-2011MFC
Engine 260 in model 118, 177, 247
with code M016 (Uprated Engine)

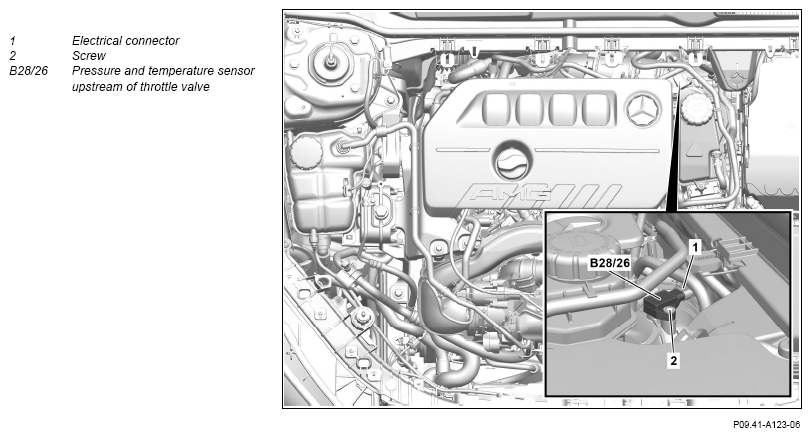

Fig 1: Charge Air Pressure And Temperature Sensor Upstream Of Throttle Valve Components Location - Engine 260 In Model 247 With Code M016
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Release electrical connector (1) and disconnect. | ||
| 2 | Remove screw/bolt (2). | *BA09.41-P-1004-01KOA | |
| 3 | Remove pressure and temperature sensor upstream of the throttle valve (B28/26) and, seal opening with a suitable stop plug. | Fig 2 | |
| 4 | Install in the reverse order. | ||
| 5 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA | |||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform Engine test run. While doing so, check Engine for proper operation and leak tightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 260.9 | |
|---|---|---|---|
| BA09.41-P-1004-01KOA | Pressure and temperature sensor to charge air cooler | Nm | 6 |
