Check And Adjust Toe At Rear Axle - AR40.20-P-0304-08MFA
Model 118, 177, 243, 247 with code U55 (Multi-link axle)
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Assign suspension data Model 243 with code U55 (Multi-link axle) | AR40.20-P-0203QA | |
| Assign suspension data Model 247 with code U55 (Multi-link axle) | AR40.20-P-0203MB | ||
| Assign suspension data Model 177 with code U55 (Multi-link axle) | AR40.20-P-0203MFA | ||
| Assign suspension data Model 118 with code U55 (Multi-link axle) | AR40.20-P-0203MFI | ||
| Remove/install track rod Model 243 with code U55 (Multi-link axle) | AR35.20-P-0109EQA | ||
| Remove/install track rod Model 118, 177, 247 with code U55 (Multi-link axle) | AR35.20-P-0109MFA |
TIE ROD
| Number | Designation | Model 243 | Model 118, 177, 247 | ||
|---|---|---|---|---|---|
| BA35.20-P-1001-04N | Nut, tie rod to rear axle carrier | Stage 1 | Nm | 70 | 50 |
| Stage 2 | ∠° | 90 | 90 | ||
Check
- Compare specified values for toe against actual values.

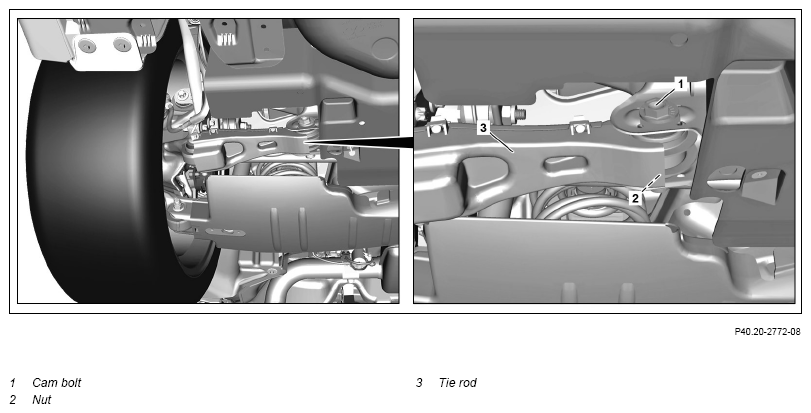

Adjust (only if the actual values deviate from the specified values) The following steps are shown on the left side of the vehicle and must be performed analogously on the right side for adjustment work.
- Loosen nut (2).
- Adjust toe using cam bolt (1).
- Tighten nut (2)
If specified values are not reached, ↓ Replace tie rod (3).
