Remove/Install Rear Track Rod - AR35.20-P-0109MFA

Model 118, 177, 247 with code U55 (Multi-link axle)

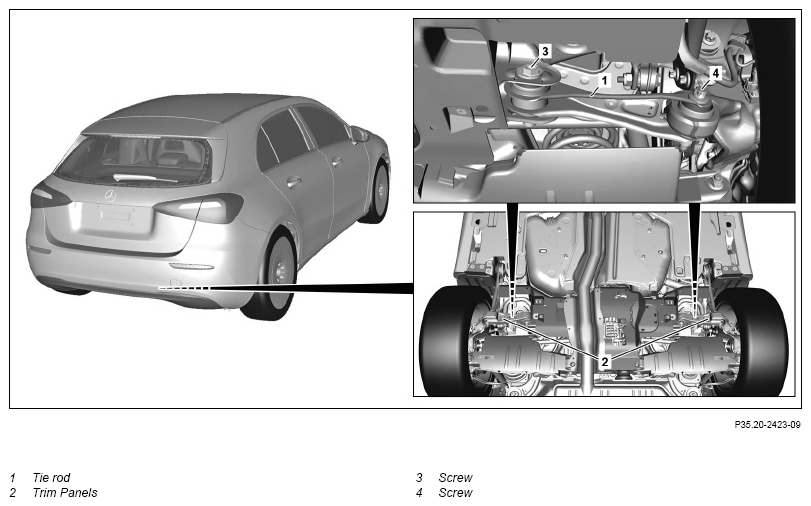

Fig 1: Rear Tie/Track Rod Components Location - Model 247 With Code U55

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Lift vehicle with lifting platform.		AR00.60-P-1006A
2	Unclip left or right trim (2) from tie rod (1) and remove.
3	Mark installation position of eccentric disk relative to screw (3).	The eccentric disk (3) on the screw is used for toe adjustment.
4	Unscrew nut of screw (3).	: Only tighten screws and nuts of chassis components in ready-to-drive condition. Otherwise, the suspension components may be damaged. : Always replace screws and nuts of the suspension components.
		Nut, tie rod to rear axle carrier	*BA35.20-P-1001-04N
5	Unscrew nut from screw (4).	: Only tighten screws and nuts of chassis components in ready-to-drive condition. Otherwise, the suspension components may be damaged. : Always replace screws and nuts of the suspension components.
		Nut, tie rod to wheel carrier	*BA35.20-P-1002-04N
6	Remove screws (3, 4) and remove tie rod (1).
7	Install in the reverse order.
	Measure
8	(Multi-link axle)	Perform chassis alignment.	AR40.20-P-0200MFA
