Remove/Install Rear Axle Shaft Flange And Angular Ball Bearing - AR35.20-P-0130MFA
Model 118, 177, 243, 247
MODIFICATION NOTES
| 30.11.2020 | "Basic date", added. | (Operation step 5. | BA42.10-P-1004-06K |

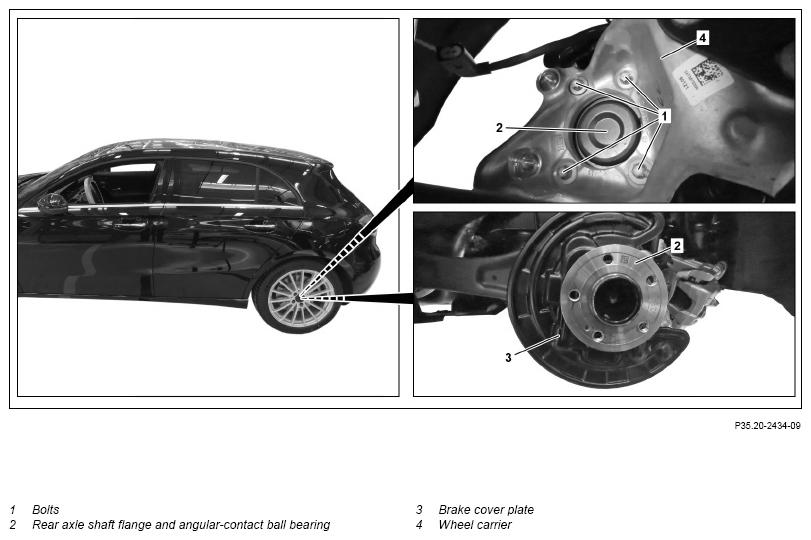

Fig 1: Rear Axle Shaft Flange And Angular Ball Bearing Components Location - Model 247 (Shown On Model 177.0)
Shown on model 177.0 with code U55 (Multi-link axle) without code M005 (Vehicles with 4MATIC/all-wheel drive)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove screw connecting rear axle shaft to wheel bearing. | Model 118, 177, 243, 247 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code U55 (Multi-link axle) |
|
| *BA35.30-P-1001-01P | |||
| 2 | Remove left rear or right rear brake disk and secure left or right brake caliper unstressed o the vehicle. | AR42.10-P-0220MFA | |
This results in damage to the brake hose and can impair its function. |
|||
| 3 | Remove rear axle rpm sensor. | Model 177, 247 with code U54 (Compound-link axle) | |
| AR42.30-P-0716MFA | |||
| 4 | Unscrew screws (1) from wheel carrier (4). | ||
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| *BA35.20-P-1001-06G | |||
| *BA35.20-P-1002-06F | |||
| *BA35.20-P-1001-06F | |||
| 5 | Remove rear axle shaft flange and angular-contact ball bearing (2) with brake cover plate (3). | *BA42.10-P-1004-06K | |
| 6 | Check brake cover plate (3) for damage. | If the brake cover plate (3) is damaged, ↓ replace brake cover plate (3). |
|
| 7 | Install in the reverse order. |
HUB
| Number | Designation | Model 118 | Model 177 | |||
|---|---|---|---|---|---|---|
| BA35.20-P-1001-06F | Screw, wheel bearing to wheel carrier (multi-link axle) | M12 | Stage 1 | Nm | 80 | 80 |
| Stage 2 | 45 | 45 | ||||
HUB
| Number | Designation | Model 247 | |||
|---|---|---|---|---|---|
| BA35.20-P-1001-06F | Screw, wheel bearing to wheel carrier (multi-link axle) | M12 | Stage 1 | Nm | 80 |
| Stage 2 | 45 | ||||
HUB
| Number | Designation | Model 243 | |||
|---|---|---|---|---|---|
| BA35.20-P-1001-06G | Screw, wheel bearing to wheel carrier (multi-link axle) | M12 | Stage 1 | Nm | 80 |
| Stage 2 | 45 | ||||
HUB
| Number | Designation | Model 118 | Model 177 | |||
|---|---|---|---|---|---|---|
| BA35.20-P-1002-06F | Screw, wheel bearing to rear axle carrier (torsion-beam axle) | M12 | Stage 1 | Nm | 50 | 50 |
| Stage 2 | 45 | 45 | ||||
HUB
| Number | Designation | Model 247 | |||
|---|---|---|---|---|---|
| BA35.20-P-1002-06F | Screw, wheel bearing to rear axle carrier (torsion-beam axle) | M12 | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | |||
REAR AXLE SHAFT
| Number | Designation | Model 118, 177, 243, 247 | |||
|---|---|---|---|---|---|
| BA35.30-P-1001-01P | Bolt, rear axle shaft to wheel bearing | M14 | Stage 1 | Nm | 100 |
| Stage 2 | ∠° | 45 | |||
BRAKE DISKS, BRAKE COVER PLATE
| Number | Designation | Model 243 | ||
|---|---|---|---|---|
| BA42.10-P-1004-06K | Bolt, brake cover plate to wheel carrier | M6 | Nm | 20 |
