Remove/Install Rear Axle Differential - AR35.31-P-0522MFC

Model 118, 177, 247 with engine 260, 282, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive)

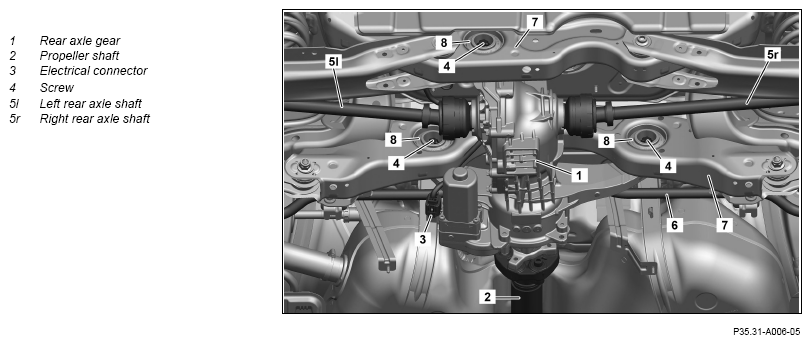

Fig 1: Rear Axle Differential/Gear Components Location - Model 247 With Engine 260 With Code M005

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of accident  caused by vehicle starting off on its own when jacked up. Risk of injury  caused by rotating parts when working on running engine or drive train.	Ensure that jack stands are standing firmly. An authorized person must occupy the driver's seat. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0008-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Information on influencing load ratios when removing major assemblies		AH00.60-P-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Raise vehicle using vehicle lift and secure in place.		AR00.60-P-0100-01A
		: Only lower and release the vehicle after the leak test.
		Vehicle hoist securing tool	Fig 2
2	Remove propeller shaft (2).		AR41.10-P-0050MFA
3	Remove trim from rear axle carrier.	Model 118, 177, 247 with engine 260 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code U55 (Multi-link axle) except code M016 (Uprated engine) Model 118, 177, 247 with engine 282, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code U55 (Multi-link axle) : Mount rear axle carrier trim only after leak test.	AR61.30-P-0050MFA
4	Drain oil from rear axle differential (1).	When replacing rear axle differential (1).
		Model 118 (except 118.351/651) with engine 260, 282, 654 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 118 (except 118.351/651) with engine 260, 282, 654 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 177 (except 177.051/151/951) with engine 260, 282, 654 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 177 (except 177.051/151/951) with engine 260, 282, 654 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 247 (except 247.651/751) with engine 260, 282, 654 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 247 (except 247.651/751) with engine 260, 282, 654 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive)	AP35.00-P-3501MFA
		Model 118.351/651 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 118.351/651 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 177.051/151/951 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 177.051/151/951 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 247.651/751 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 247.651/751 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive)	AP35.00-P-3501I
5	Release and disconnect electrical connector (3) and unclip electric line from rear axle differential (1).		AR35.40-P-7401MFC
6	Remove left rear axle shaft (5l).		AR35.30-P-0621MFC
7	Support and secure rear axle differential (1).
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
8	Counterhold nuts and remove screws (4).	Nut, rear axle differential to rear axle carrier at front (multi-link axle)	*BA35.31-P-1001-07A
		Bolt, rear axle differential to rear axle carrier at rear (multi-link axle)	*BA35.31-P-1002-07A
9	Pry right rear axle shaft (5r) out of rear axle differential (1) and secure against falling down		AR35.30-P-0621MFC
		Do not damage radial shaft sealing ring of right rear axle shaft (5r). Otherwise leaks may occur.
10	Lower and remove rear axle differential (1).
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
11	Install in the reverse order.
12	Check and correct oil level in rear axle differential (1).		AR35.31-P-0520-08MFC
		Rear axle differential filling capacity	*BF35.31-P-1001-02F
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Filling screw/drain screw to housing cover at front/side	*BA35.31-P-1005-07A
13	Reset wear data in all-wheel drive control unit (N15/17) using diagnostic system.	When replacing rear axle differential (1).
			AD00.00-P-2000-06MFA
14	Check rear axle differential (1) for leak tightness.
15	Install trim of rear axle carrier.	Model 118, 177, 247 with engine 260 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code U55 (Multi-link axle) except code M016 (Uprated engine) Model 118, 177, 247 with engine 282, 654 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code U55 (Multi-link axle)	AR61.30-P-0050MFA
16	Release vehicle and lower on vehicle lift.		AR00.60-P-0100-01A
		Vehicle hoist securing tool	Fig 2

Fig 2: Identifying Vehicle Hoist Securing Tool (171 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
