Remove/Install Stabilizer Bar On Front Axle - AR32.20-P-0300MFA

Model 118, 177, 247

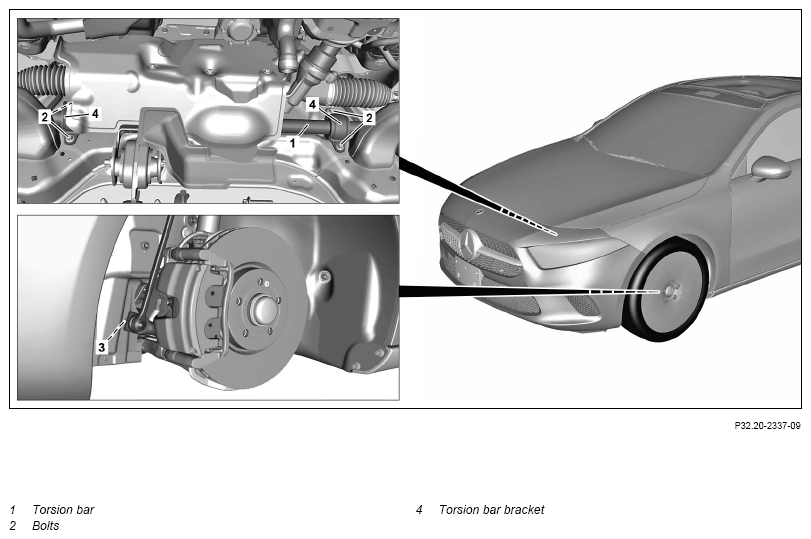

Fig 1: Stabilizer Bar On Front Axle Components Location - Model 247 (Shown On Model 177.0)

Courtesy of MERCEDES-BENZ USA

Shown on model 177.0

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove front axle.		AR33.10-P-0100MFA
2	Remove screws (2) from torsion bar holder (4)	Tighten the screws (2) evenly.
		Bolt, stabilizer bar to front axle carrier	*BA32.35-P-1001-02A
3	Remove torsion bar (1) from front axle.
4	Change bearings of torsion bar (1).	When replacing the torsion bar (1).
5	Install in the reverse order.
	Measure
6	Perform chassis alignment.		AR40.20-P-0200MFA

FRONT AXLE STABILIZER BAR

Number	Designation			Model 118, 177, 247
BA32.35-P-1001-02A	Bolt, stabilizer bar to front axle carrier	M8	Nm	36
