Remove/Install Front Stabilizer Bar Linkage - AR32.35-P-3330MFA
Model 118, 177, 243, 247
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove left front wheel and tire assembly or right front wheel and tire assembly. | AR40.10-P-1102MFA | |
| 2 | Counterhold ball pins (2) and unscrew nuts (3). | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||

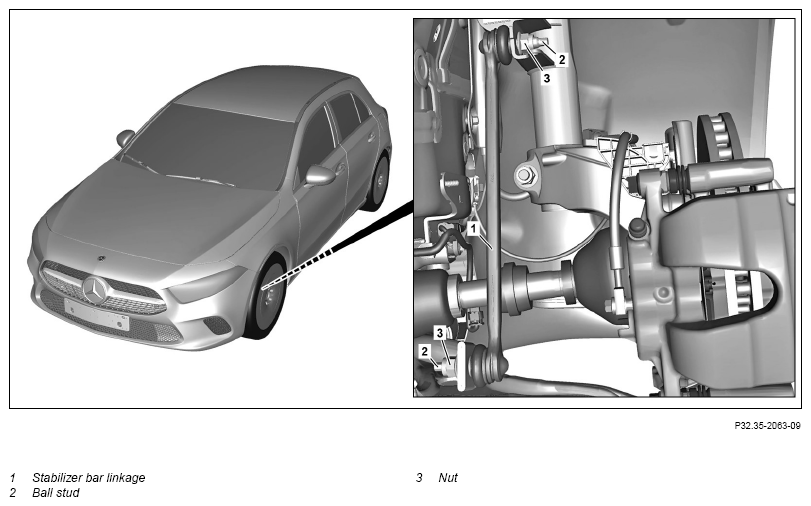

| *BA32.35-P-1002-02A | |||
| Fig 2 | |||
| 3 | Remove torsion bar linkage (1). | ||
| Check | |||
| 4 | Check torsion bar linkage (1) for damage and wear. | If wear or damage is detected, ↓ replace torsion bar linkage (1). |
|
| 5 | Install in the reverse order. |
FRONT AXLE STABILIZER BAR
| Number | Designation | Model 243 | Model 118, 177, 247 | ||
|---|---|---|---|---|---|
| BA32.35-P-1002-02A | Nut, torsion bar linkage to suspension strut/stabilizer bar | M12 | Nm | 105 | 105 |
