Remove/Install Charge Air Pipe Downstream Of Turbocharger - AR09.41-P-1333MFG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove air intake pipe upstream of the exhaust gas turbocharger. | AR09.10-P-0003MFG | |
| 2 | Remove screws (2). | *BA09.41-P-1001-01FA | |
| 3 | Release clamps (3). | *BA09.41-P-1003-01FA | |
| *BA09.41-P-1005-01FA | |||
| 4 | Remove charge air pipe (1). | ||

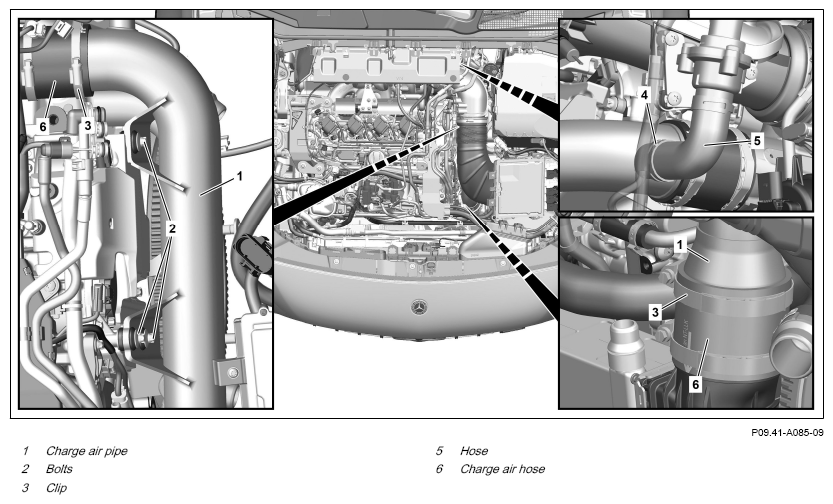

| 5 | Seal exposed openings with suitable protective covers. | Fig 1 | |
| Fig 2 | |||
| 6 | Check charge air hoses (6) and hose (5) for damage. | If damage is found: ↓ replace charge air hoses (6) and hose (5). |
*BA09.41-P-1003-01FA |
| *BA09.41-P-1005-01FA | |||
| 7 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. | ||
| 9 | Install upper engine cover. | ||
| AP01.10-P-2405-01K |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 139.9 | ||
|---|---|---|---|---|
| BA09.41-P-1001-01FA | Screw, charge air pipe to chain case cover | Stage 1 | Nm | 4 |
| Stage 2 | ∠° | 90 | ||
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 139.9 | |
|---|---|---|---|
| BA09.41-P-1003-01FA | Charge air hose clamp to charge air cooler | Nm | 6 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 139.9 | |
|---|---|---|---|
| BA09.41-P-1005-01FA | Clamp, charge air hose to turbocharger | Nm | 4 |
