Outer A-Pillar Paneling Remove And Install - Ar63.20-P-1223MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

Shown on model 177.0

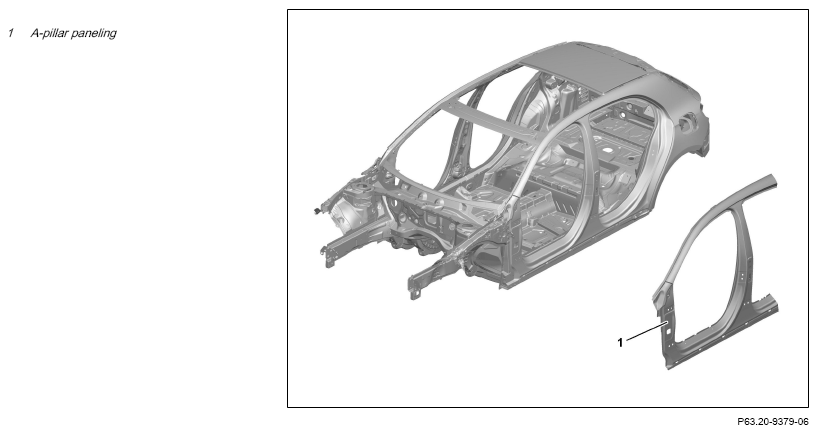

Fig 1: Outer Front Pillar Panel Component Location (Shown On Model 177.0)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	General information on MB materials		AH98.00-P-9409-03A
	Remove
1	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blanket.
3	Remove upper front longitudinal member.		AR62.20-P-1286MFA
4	Remove the A-pillar paneling (1).		AR63.20-P-1223-01MFA
		1K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A
	General information on riveting		AH60.00-P-0003-01N
5	Prepare A-pillar paneling (1).		AR63.20-P-1223-02MFA
		1K-zinc dust paint	*BR00.45-Z-1056-07A
6	Install A-pillar paneling (1).		AR63.20-P-1223-03MFA
		White sealing compound, 310 ml, DBL 6069.20	*BR00.45-Z-1003-01A
		Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN)	*BR00.45-Z-1035-13A
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Parts kit for 2-component adhesive for body If a basic body filler is used as an alternative to the restoration of surfaces with body solder, ↓ apply basic body filler.	*BR00.45-Z-1162-02A
			AR60.00-P-0031-01LWG
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		Basic body filler	*BR00.45-Z-1057-07A
7	Install upper front longitudinal member.		AR62.20-P-1286MFA
8	Clean weld joints and sheet metal flange.
9	Remove spark protection blankets.
10	Clean repair area.
11	Prime repair areas with a primer filler.
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting		AH98.00-P-0003-01A
		Use only primer filler approved by Daimler AG: https://xentryportaLi.daimler.com
12	Seal seam after repair.		AR97.10-P-4000MFA
13	Paint repair areas and adjacent surfaces.
Notice	Notes on paintwork repairs		AH98.00-P-9408-02A
	General information on operation items and work procedures for painting		AH98.00-P-0003-01A
		Use only paints approved by Daimler AG: https://xentryportaLi.daimler.com
14	Supplement cavity preservation.		AR97.20-P-1500MFA
15	Reinstall detachable parts in area of repair point.
