Outer A-Pillar Paneling Remove - Ar63.20-P-1223-01MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

The next steps are shown on the left side of the vehicle on model 177.0. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

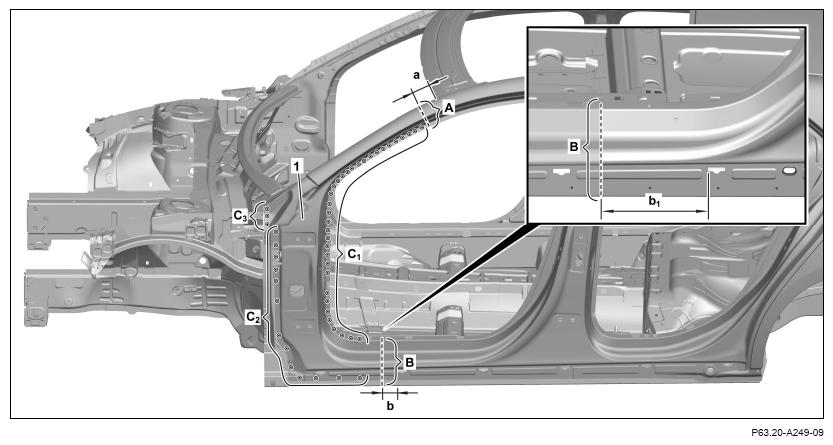

1. Mark separating points on A-pillar paneling (1) and cut (areas A, B).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.



   Model 118.3/6

   Model 177.0/1/9

   Model 247.0

   Dimensions:

   a = approx. 65 mm

   b = approx. 20 mm



   Model 247.6/7

   Dimensions  :

   a = approx. 65 mm

   b₁ = approx. 200 mm

2. Expose spot welds on the A-pillar paneling (1) and cut off (areas C₁ , C₂ , C₃ ).

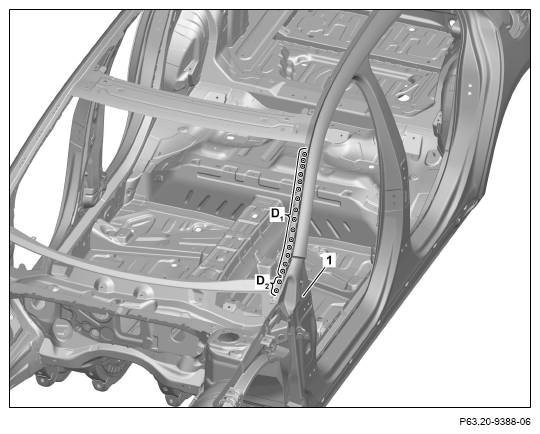

3. Expose spot welds on the A-pillar paneling (1) and cut off (areas D₁ , D₂ ).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

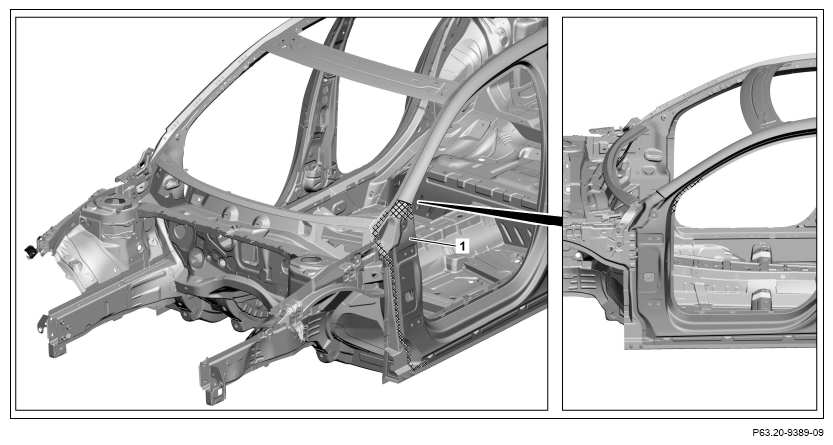

4. Heat A-pillar panel (1) in cross-hatched areas.



   Cross-hatched areas are bonded with adhesive.

5. Remove A-pillar paneling (1).
6. Grind mating surfaces down to bare metal in cross-hatched areas.



   Sand down spot weld flanges to bare metal on both sides.

7. Remove grinding dust and drill chips.

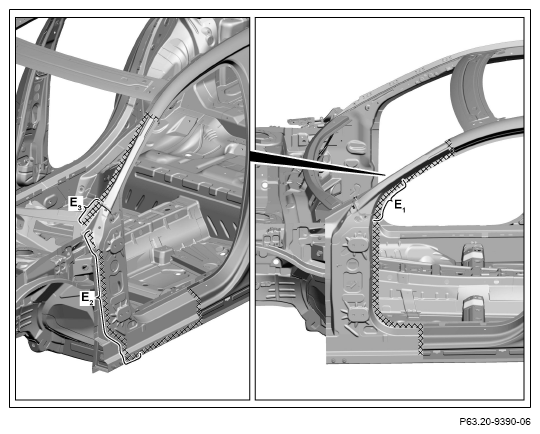

8. Coat insides of spot weld flanges with zinc dust paint.

   Bonding surfaces may not be coated with zinc dust paint (areas E₁ , E₂ , E₃ ).

   Otherwise adhesion problems can occur.



   Observe pretreatment of bonding surfaces.

Courtesy of MERCEDES-BENZ USA
