B-Pillar Complete Replacement - Ar63.20-P-1350MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

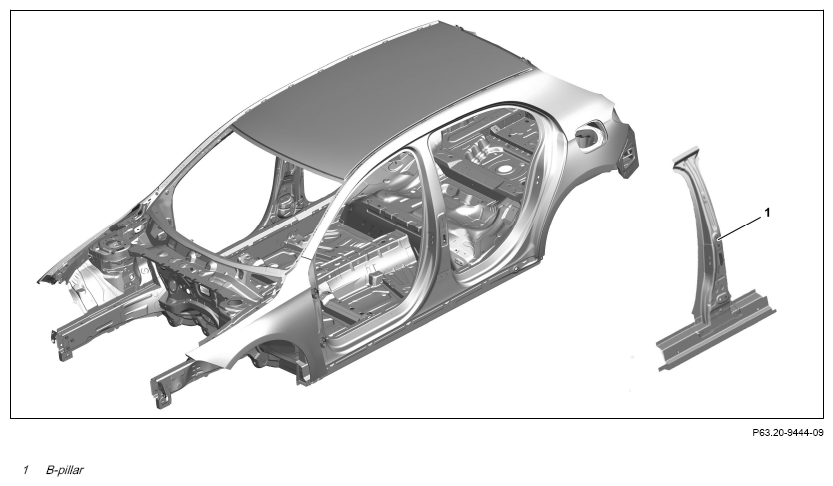

Fig 1: Center Pillar Component Locations (Shown On Model 177.0)

Courtesy of MERCEDES-BENZ USA

Shown on model 177.0

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
	Notes on acoustic foam and structural foam in the vehicle		AH60.00-P-0039-01MFA
	General information on MB materials		AH98.00-P-9409-03A
	Remove
	Remove detachable parts in area of repair point.
2	Cover all detachable parts remaining in vehicle with spark protection blanket.
3	Remove paneling of the outer B-pillar.		AR63.20-P-1222MFA
4	Cut off B-pillar (1).	Model 118.3/6	AR63.20-P-1350-01MFB
		Model 177.0/1/9Model 247.0	AR63.20-P-1350-01MFA
		Model 247.6/7	AR63.20-P-1350-01MFX
	000 588 00 84 00 Heat gun		WS54.00-P-0049B
		1K-zinc dust paint	*BR00.45-Z-1056-07A
	Install
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A
	General information on riveting		AH60.00-P-0003-01N
5	Prepare B-pillar (1).	Model 118.3/6	AR63.20-P-1350-02MFB
		Model 177.0/1/9Model 247.0/6/7	AR63.20-P-1350-02MFA
		1K-zinc dust paint	*BR00.45-Z-1056-07A
6	Install B-pillar (1).	Model 118.3/6	AR63.20-P-1350-03MFB
		Model 177.0/1/9Model 247.0/6/7	AR63.20-P-1350-03MFA
	000 588 01 23 00 Body straightening system		WS60.00-P-0023K
	000 588 02 39 00 Rivet press tool		WS60.00-P-0010B
	000 588 02 84 00 Welder		WS60.00-P-0022K
	000 588 01 84 00 Welder		WS60.00-P-0021K
		White sealing compound, 310 ml, DBL 6069.20	*BR00.45-Z-1003-01A
		Parts kit for 2-component adhesive for body	*BR00.45-Z-1162-02A
		1K-zinc dust paint	*BR00.45-Z-1056-07A
		Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN)	*BR00.45-Z-1012-13A
		Side portal frame	Fig 2
7	Release vehicle from straightening bench, lift and remove straightening bench.
	Clean
8	Clean weld joints and sheet metal flanges.
9	Install paneling of the outer B-pillar.		AR63.20-P-1222MFA
10	Remove spark protection blankets.
11	Reinstall detachable parts in area of repair point.

Fig 2: Side Portal Frame (210 589 17 23 00)

Courtesy of MERCEDES-BENZ USA
