Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600MNF
Engine 176 in model 463 with transmission 722.9
Engine 279 in model 463 with transmission 722.9
Engine 642 in model 463 with transmission 722.9
Shown on MODEL 463.346

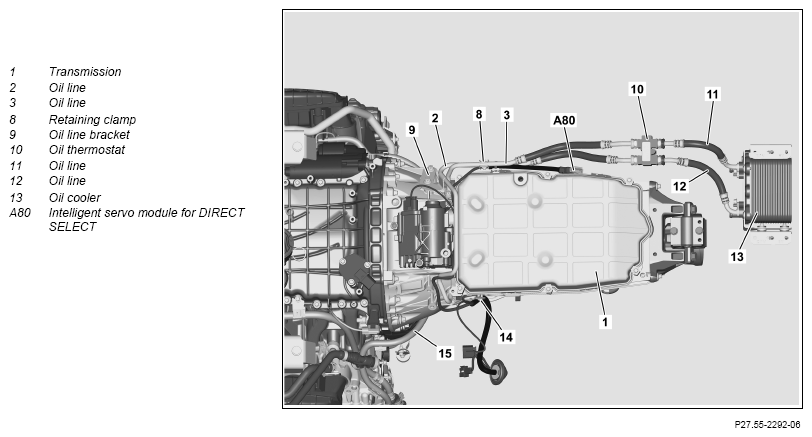

Fig 1: Oil Lines Of Oil Cooling For Automatic Transmission Components Location - Engine 176 In Model 463 With Transmission 722.9
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Lift/jack up vehicle | AR00.60-P-1000G | |
| 2 | Remove cable tie from electrical wiring harness of intelligent servo module for DIRECT SELECT (A80) and place wiring harness to one side | ||
| 3 | Remove retaining clamp (8) | *BA27.55-P-1004-01D | |
| 4 | Detach bracket for oil line (9) from transmission (1) | Engine 176 in model 463 with transmission 722.9 Engine 642 in model 463 with transmission 722.9 |
|
| *BA27.55-P-1017-01D | |||
| 5 | Detach oil lines (2, 3) from transmission (1) | ||
| *BA27.55-P-1002-01D | |||
| Fig 2 | |||
| 6 | Detach oil lines (2, 3) from oil thermostat (10) and seal them off | AR27.10-P-0501-03GW | |
| Fig 2 | |||
| 7 | Remove oil lines (2, 3) downwards | ||
| 8 | Detach oil lines (11, 12) from oil thermostat (10) and seal them off | AR27.10-P-0501-03GW | |
| Fig 2 | |||
| 9 | Detach oil line (11, 12) from oil cooler (13) and seal off | ||
| *BA27.55-P-1001-01D | |||
| Fig 2 | |||
| 10 | Remove oil lines (11, 12) downwards | ||
| 11 | Install in the reverse order |
OIL COOLING
| Number | Designation | Transmission 722.9 in model 463 with engine 113/157/273/279 | Transmission 722.9 in model 463 with engine 176 | |
|---|---|---|---|---|
| BA27.55-P-1001-01D | Union nut, oil line to oil cooler | Nm | 25 | 25 |
OIL COOLING
| Number | Designation | Transmission 722.9 in model 463 with engine 642 | |
|---|---|---|---|
| BA27.55-P-1001-01D | Union nut, oil line to oil cooler | Nm | 25 |
OIL COOLING
| Number | Designation | Transmission 722.9 in model 463 with engine 113/157/273/279 | Transmission 722.9 in model 463 with engine 176 | |||
|---|---|---|---|---|---|---|
| BA27.55-P-1002-01D | Bolt, oil line to transmission housing | Banjo bolt | Stage 1 | Nm | 5 | 5 |
| Stage 2 | ∠° | 90 | 90 | |||
| Hexalobular bolt | Nm | 12 | 12 | |||
OIL COOLING
| Number | Designation | Transmission 722.9 in model 463 with engine 642 | |||
|---|---|---|---|---|---|
| BA27.55-P-1002-01D | Bolt, oil line to transmission housing | Banjo bolt | Stage 1 | Nm | 5 |
| Stage 2 | ∠° | 90 | |||
| Hexalobular bolt | Nm | 12 | |||
OIL COOLING
| Number | Designation | Transmission 722.9 in model 463 with engine 113/157/273/279 | Transmission 722.9 in model 463 with engine 176 | |
|---|---|---|---|---|
| BA27.55-P-1004-01D | Bolt, clamp to oil line | Nm | 8 | 8 |
OIL COOLING
| Number | Designation | Transmission 722.9 in model 463 with engine 642 | |
|---|---|---|---|
| BA27.55-P-1004-01D | Bolt, clamp to oil line | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 722.9 in model 463 with engine 176 | Transmission 722.9 in model 463 with engine 642 | |
|---|---|---|---|---|
| BA27.55-P-1017-01D | Bolt, bracket for oil line to transmission housing | Nm | 35 | 20 |
