Disassemble/Assemble Rear Axle Shaft - AR35.30-P-7351F

Model 461

with disk brakes on the rear axle

Model 463 (except 463.270/271) up to model year 2013

with disk brakes on the rear axle

Courtesy of MERCEDES-BENZ USA

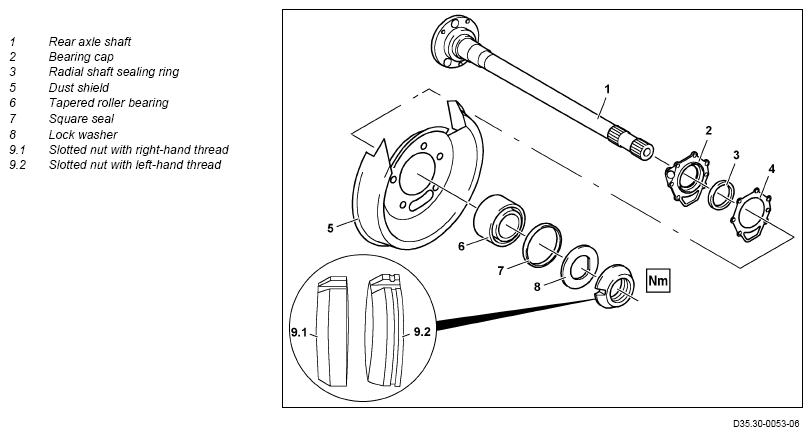

Rotation direction of rear axle shaft (1) in direction of arrow

Courtesy of MERCEDES-BENZ USA

Locking clip of slotted nut with left-hand thread (9.2) on left rear axle shaft (1)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove rear axle shaft (1).		AR35.30-P-0620F
	Disassemble
2	Clamp rear axle shaft (1) before disassembling.	Screw two wheel bolts into rear axle shaft (1) and clamp it into vise.
3	Release and remove slotted nut with right-hand thread (9.1) or slotted nut with left-hand thread (9.2).	Pronged wrench	Fig 1
4	Remove lock washer (8).
5	Remove square sealing ring (7).
6	Press tapered roller bearing (6) off rear axle shaft (1).		AR35.30-P-7351-01B
		Do not damage the ABS measuring ring on vehicles with anti-lock braking system (ABS). Otherwise, the anti-lock braking system (ABS) will malfunction.
		Assembly plate	Fig 2
7	Remove bearing cap (2) and dust shield (5) from rear axle shaft (1).
8	Remove radial shaft sealing ring (3) in bearing cap (2).
	Assemble
9	Press radial shaft sealing ring (3) into bearing cap (2).	Install a new radial shaft sealing ring (3).
		Fill space between dust lip and sealing lip with grease, apply light coating of grease to sealing lip. Press in radial shaft sealing ring (3) flush to a maximum of 0.3 mm inside bearing cap (2).
		Long-life grease	*BR00.45-Z-1001-06A
		Assembly plate	Fig 2
10	Slide bearing cap (2) and dust shield (5) onto rear axle shaft (1).
11	Slide tapered roller bearing (6) onto rear axle shaft (1).
12	Slide square sealing ring (7) onto tapered roller bearing (6).	Replace square sealing ring (7).
13	Press tapered roller bearing (6) with lock washer (8) onto rear axle shaft (1).		AR35.30-P-7351-01B
		Turn bearing outer race during the pressing-on procedure. Otherwise, the tapered roller bearing (6) will be damaged.
		The anti-twist lock of the lock washer (8) must be flush with the cutout of the rear axle shaft (1). Otherwise, the rear axle shaft (1) will be damaged.
		Replace lock washer (8). The flat side of the lock washer (8) must face towards the slotted nut with right-hand thread (9.1) or slotted nut with left-hand thread (9.2). Fit a lock washer (8) to ensure that only the bearing inner race is pressed when pressing on. With anti-lock braking system, do not damage the ABS measuring ring.
		Assembly plate	Fig 2
14	Install slotted nut with right-hand thread (9.1) or slotted nut with left-hand thread (9.2).	Slotted nut to rear axle shaft	*BA35.30-P-1002-01C
		Pronged wrench	Fig 1
15	Secure slotted nut with right-hand thread (9.1) or slotted nut with left-hand thread (9.2) using a lock washer (8) on both grooves.	Secure slotted nut with right-hand thread (9.1) or slotted nut with left-hand thread (9.2) so that both directions of rotation are locked (see arrows on axle shaft and illustration above).
	Install
16	Install rear axle shaft (1).		AR35.30-P-0620F

Fig 1: Identifying Pronged Wrench (460 589 01 07 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Assembly Plate (460 589 01 35 00)

Courtesy of MERCEDES-BENZ USA
