(Disassemble And Assembly Joint Housing - AR33.20-P-0601GG)

Model 460

Model 461 (except 461.331)

Model 463 (except 463.270/271)

up to model year 2013

except code LQ0 (G650 Landaulet)

except code ZQ0 (G 500 4x4 ² )

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove
1	Remove wheel hub.		AR33.20-P-0310GG
	Disassemble
2	Remove seal (7).
3	Remove bearing outer race (2).	Internal extractor	Fig 8
		Counter stay	Fig 3
4	Remove tapered roller bearing (3) and sealing ring (4).	Drift	Fig 1
5	Remove bearing outer race (5).	Internal extractor	Fig 8
		Counter stay	Fig 3

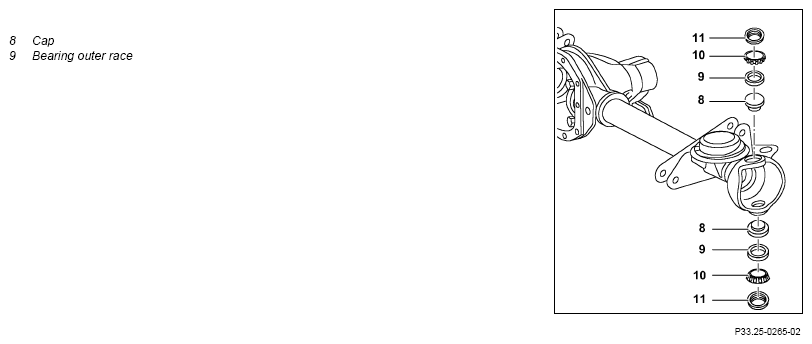

6	Remove cap (8) and bearing outer races (9).
7	Clean all parts.	Assembly cleaner	*BR00.45-Z-1028-04A
	Check
8	Check all parts.	If damage is found, ↓ replace damaged parts.
	Assemble
9	Install cap (8) and bearing outer races (9).	Mandrin	Fig 5
		Drift punch	Fig 4
10	Install bearing outer race (5).	Drift	Fig 6
11	Grease bearing (3) with lubricant and insert into joint housing (1).	MB multipurpose grease, 400 g	*BR00.45-Z-1017-06A
12	Coat circumference of sealing ring (4) with sealant and install.	Install sealing rings with outer rubber coating without sealant. Sealant, Omnifit FD 3041	*BR00.45-Z-1012-01A
		Drift	Fig 2
13	Install bearing outer race (2).	Drift	Fig 2
14	Coat sealing ring (7) with sealant and install.	Drive in sealing ring (7) further until it fits flush (max. 0.3 mm). Install sealing rings with outer rubber coating without sealant. Sealant, Omnifit FD 3041	*BR00.45-Z-1012-01A
		Drift	Fig 7
	Install
15	Install wheel hub.		AR33.20-P-0310GG

Fig 1: Identifying Drift (360 589 00 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Drift (305 589 00 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Counter Stay (000 589 34 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Drift Punch (460 589 18 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Mandrin (460 589 19 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Drift (352 589 04 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Drift (387 589 04 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Internal Extractor (000 589 31 33 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-01A	Sealant, Omnifit FD 3041	A 002 989 47 20 10
BR00.45-Z-1017-06A	MB multipurpose grease, 400 g	A 001 989 34 51 11
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
