(Remove/Install Front Wheel Hub - AR33.20-P-0310GG)
Model 460
Model 461 (except 461.331)
Model 463 (except 463.270/271)
up to model year 2013
except code LQ0 (G650 Landaulet)
except code ZQ0 (G 500 4x4 2 )
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||

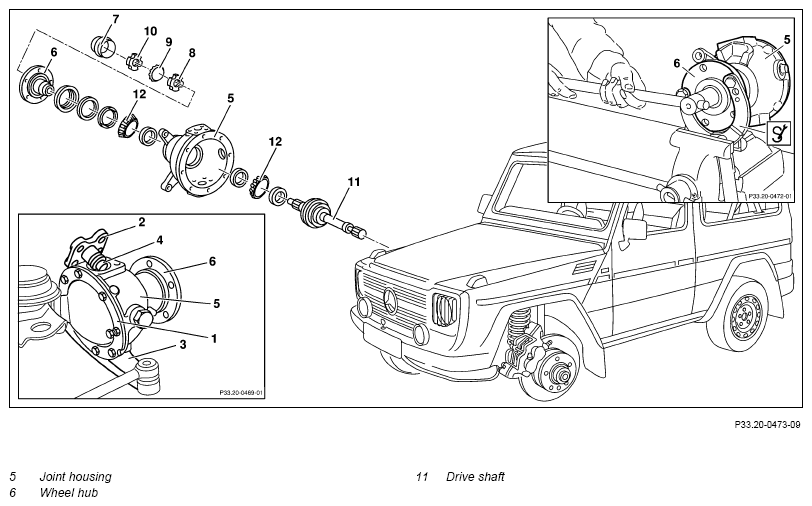

| 1 | Remove drive shaft (11) from joint housing (5). | AR33.30-P-0100A | |
| 2 | Remove wheel hub (6) from joint housing (5). | ||
| Install | |||
| 3 | Attach joint housing (5) to wheel hub (6). | ||
| 4 | Install drive shaft (11). | AR33.30-P-0100A |
