Replace Shock Absorber Mount On Lower Control Arm Of Front Axle - AR32.25-P-0111XG
Model 463 as of model year 2019

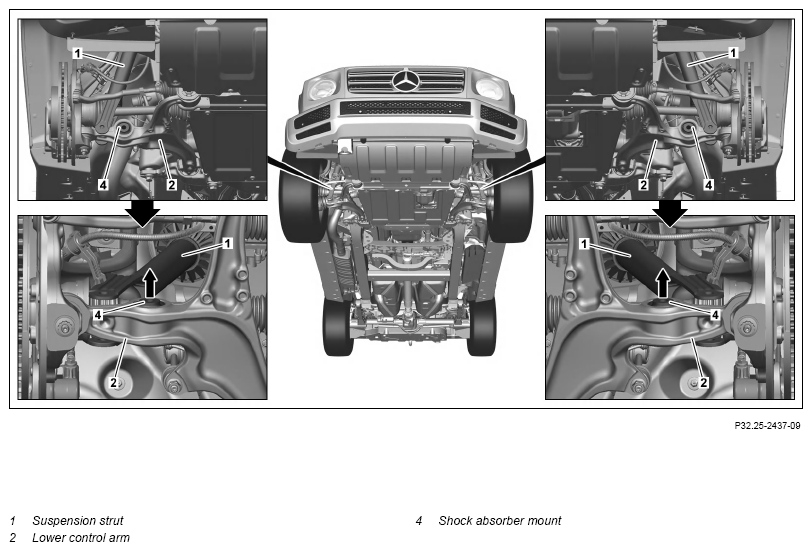

Fig 1: Shock Absorber Mount On Front Lower Control Arm Components Location - Model 463 As Of Model Year 2019
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Detach threaded connections of suspension strut (1) from strut tower and from lower transverse control arm (2). | AR32.25-P-1017XG | |
| 2 | Unclip electrical lines at suspension strut (1) from brackets. | ||
| 3 | Secure suspension strut (1) on steering knuckle to prevent it from falling. | Do not kink or crush the electrical lines. | |

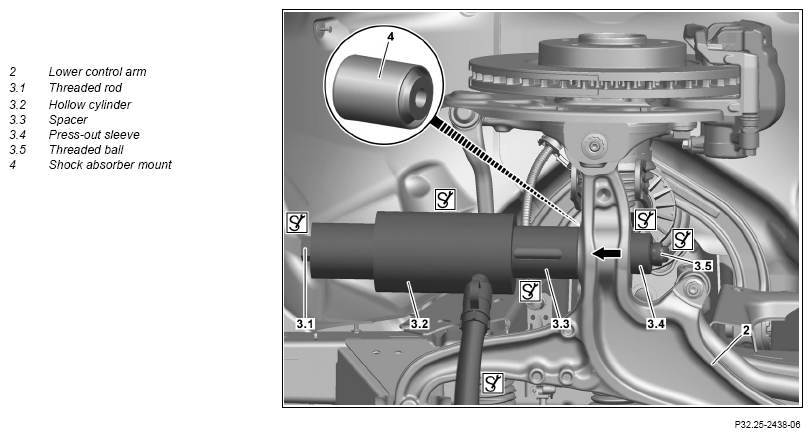

| 4 | Connect hollow cylinder (3.2) to hydraulic hose and hand pump. | Fig 2 | |
| Fig 3 | |||
| Fig 6 | |||
| 5 | Position hollow cylinder (3.2) with threaded rod (3.1) and spacer (3.3) on lower transverse control arm (2). | Fig 4 | |
| Fig 5 | |||
| Fig 2 | |||
| Fig 3 | |||
| Fig 6 | |||
| 6 | On opposite side, attach press-out sleeve (3.4) and threaded ball (3.5) to threaded rod (3.1) | Fig 4 | |
| Fig 5 | |||
| 7 | Press out shock absorber mount (4) in direction of arrow. | Replace shock absorber mount (4). |
Fig 4 |
| Fig 5 | |||
| Fig 2 | |||
| Fig 3 | |||
| Fig 6 | |||
| 8 | Thoroughly clean bearing surfaces of shock absorber mount (3) on lower control arm (2) and check for damage. | If the lower transverse control arm (2) is damaged, ↓ Replace lower transverse control arm (2). |
AR33.20-P-0510XG |
| 9 | Install in reverse order. |
