Overview Of System Components For Adaptive Damping System (ADS) Component Description - GF32.32-P-9997GWM
Model 463 as of model year 2019 with code A20 (Suspension with adaptive damping adjustment)

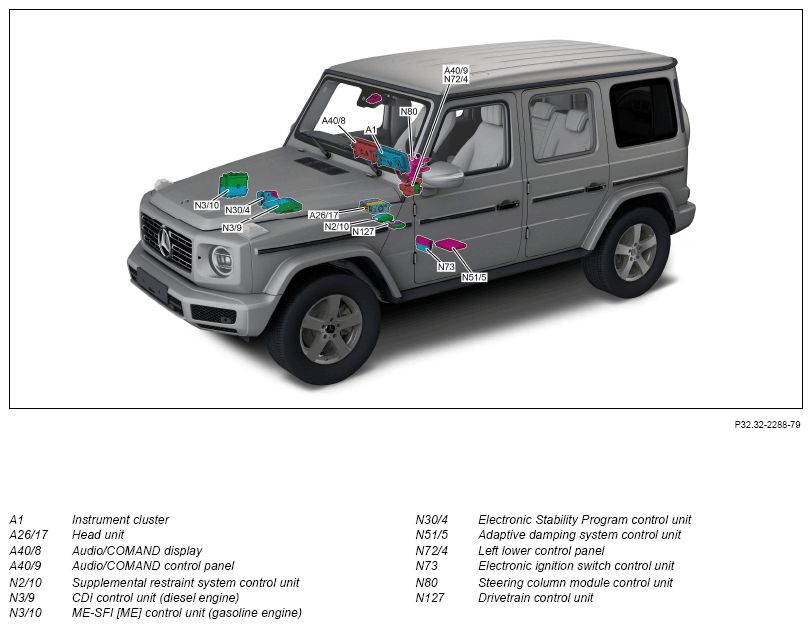

Overview of system components

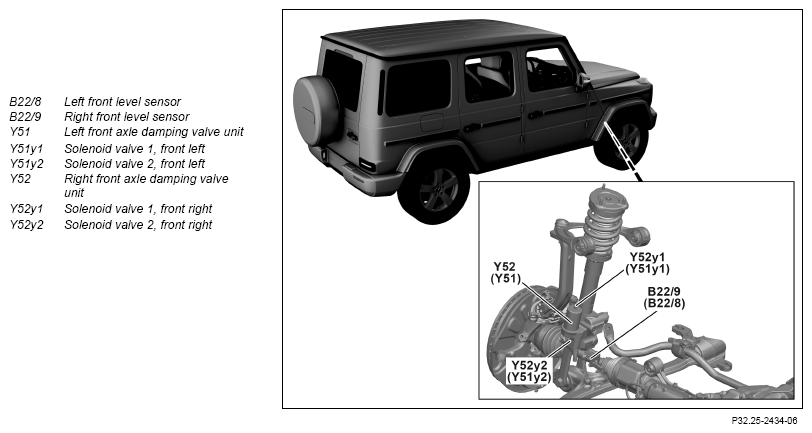

Shown on front right wheel suspension for model 463 (with code A20 (Suspension with adaptive damping adjustment))

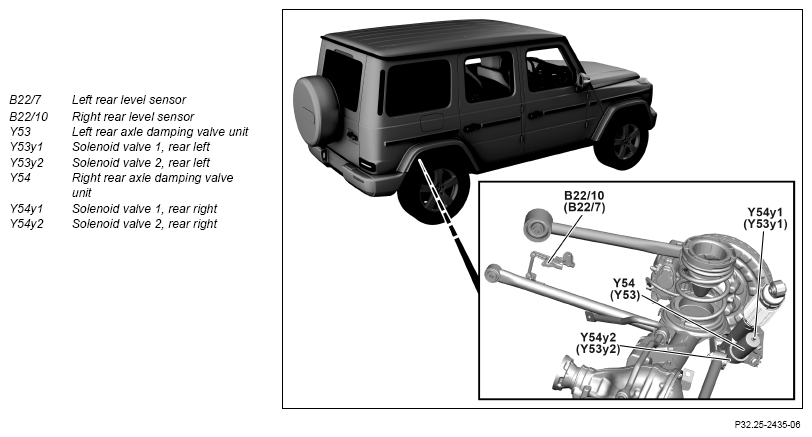

Shown on rear right wheel suspension for model 463 (with code A20 (Suspension with adaptive damping adjustment))

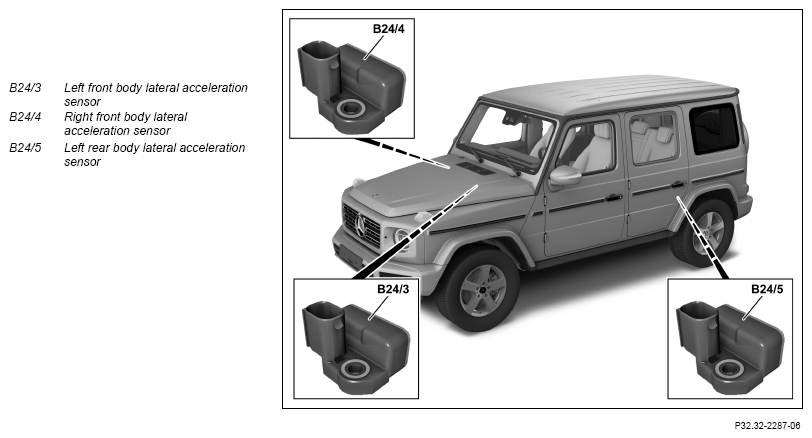

View of vehicle with body acceleration sensors
Lower control panel, shown on model 463.276/277
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Head unit, component description | Model 463 (except 463.342) as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) A26/17 | GF82.85-P-3140GW | |
| Component description for Audio/COMAND display | Model 463 (except 463.342) as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) A40/8 | GF54.30-P-6150GWM | |
| Component description for Audio/COMAND control panel | Model 463 (except 463.342) as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) A40/9 | GF54.21-P-4501GWM | |
| Supplemental restraint system control unit, component description | Model 463 (except 463.342) as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N2/10 | GF91.60-P-4080GWM | |
| Component description for CDI control unit | Model 463 with engine 656.9 as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N3/9 | GF07.16-P-6000OIB | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 176.9, 177.9 as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N3/10 | GF07.61-P-6000MNH | |
| Component description for Electronic Stability Program control unit | Model 463 (except 463.342) as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N30/4 | GF42.45-P-5119GWM | |
| Component description for adaptive damping system control unit | N51/5 | GF32.32-P-1010GWM | |
| Lower control panel, component description | Model 463 (except 463.342) as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N724, N724s1 | GF54.25-P-4270GWM | |
| Component description for the electronic ignition lock control unit | Model 463 (except 463.342) as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N73 | GF80.57-P-6001GWM | |
| Component description for steering column tube module control unit | Model 463 (except 463.342) as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N80 | GF54.21-P-6051GWM | |
| Drivetrain control unit, component description | Model 463 with engine 656.9 as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N127 | GF54.21-P-2141OIB | |
| Model 463 with engine 176.9, 177.9 as of model year 2019 with code A20 (Suspension with adaptive damping adjustment) N127 | GF54.21-P-2141MNH | ||
| Table of contents for function description of adaptive damping system (ADS) | GF32.32-P-0998GW |
