Remove/Install Front Seat Cushion Cover - AR91.18-P-1800GW
Model 463
as of model year 2013 up to model year 2019

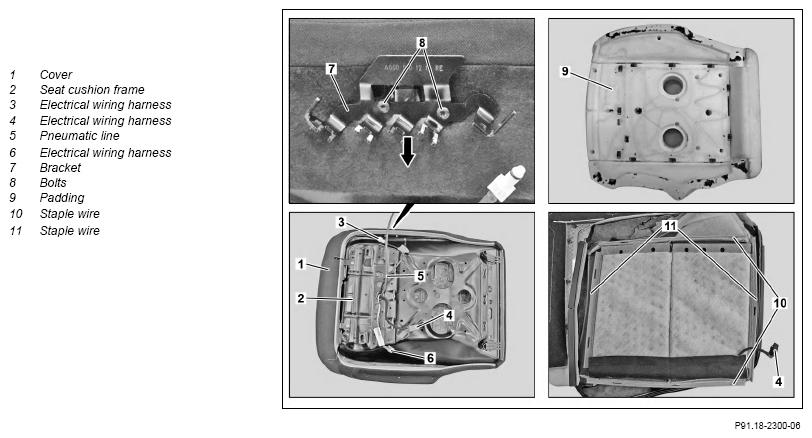

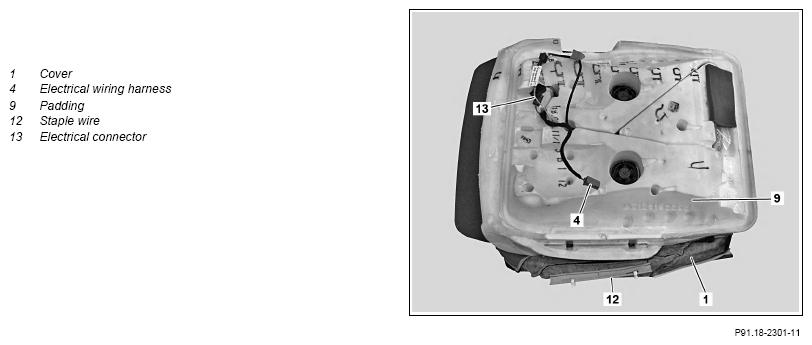

Fig 1: Front Seat Cushion Cover Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019
| Remove/install | |||
| 1 | Remove seat cushion | Model 463 (except 463.242) as of model year 2013 up to model year 2019 | AR91.10-P-3310GW |
| 2 | Unhook cover (1) from seat cushion frame (2) | ||
| 3 | Unscrew bolts (8) and remove holder (7) | ||
| 4 | Slip cover (1) over padding (9) | ||
| 5 | Lift cover (1) with padding (9) | ||
| 6 | Guide electrical wiring harness (3) through seat cushion frame (2) | ||
| 7 | Guide pneumatic line (5) through seat cushion frame (2) | ||
| 8 | Guide electrical wiring harness (4) through seat cushion frame (2) | ||
| 9 | Guide electrical wiring harness (6) through seat cushion frame (2) | ||
| 10 | Remove cover (1) with padding (9) | ||
| 11 | Disconnect electrical connector (13) at bottom of padding (9) | ||
| 12 | Unclip staple wires (10) at padding (9) | ||
| 13 | Unclip staple wires (11) at padding (9) | ||
| 14 | Lift up cover (1) and route electrical wiring harness (4) through padding (9) | ||
| 15 | Remove cover (1) from padding (9) | ||
| 16 | Install in the reverse order |
