Remove/Install Seat Cushion - AR91.10-P-3310GW
Model 463 (except 463.242)
as of model year 2013 up to model year 2019

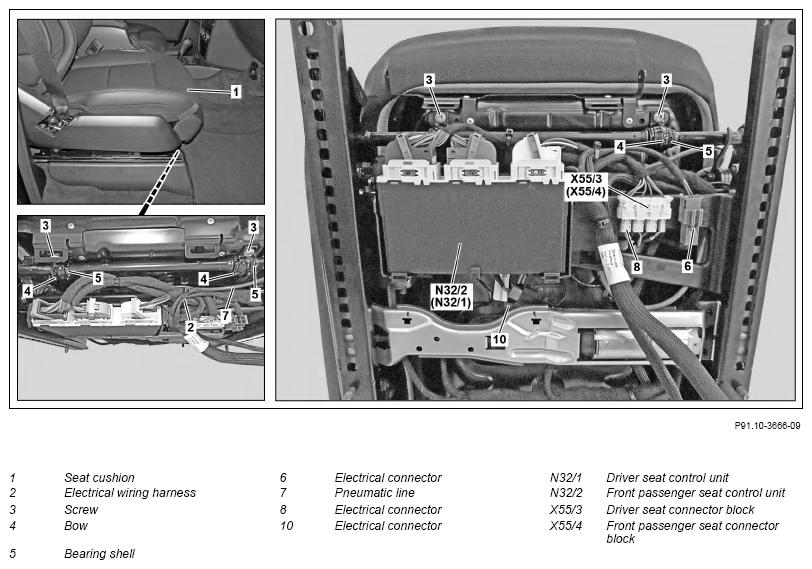

Fig 1: Seat Cushion Components Location - Model 463 (Except 463.242) As Of Model Year 2013 Up To Model Year 2019
| Remove/install | |||
| 1 | Move front seat to foremost position and uppermost position | ||
| 2 | Remove stowage box from front seat | ||
| 3 | Detach ground line from battery | Model 463 (except 463.234/236/241/242/248) as of model year 2013 up to model year 2019 | AR54.10-P-0003GW |
| Notes on battery | AH54.10-P-0001-01A | ||
| 4 | Expose electrical wiring harness (2) on seat adjustment mechanism | ||
| 5 | Disconnect pneumatic line (7) from bottom of seat adjustment mechanism | Vehicles with code (PA1) Seat Comfort Package. | |
| 6 | Remove regulating valve | Vehicles with code (PA1) Seat Comfort Package. Model 463 (except 463.242) as of model year 2013 up to model year 2019 with code PA1 (Seat comfort package)/FACELIFT 2012 |
AR91.25-P-1710GW |
| 7 | Unclip pneumatic lines (7) from holder | Vehicles with code (PA1) Seat Comfort Package. |
|
| 8 | Expose pneumatic lines (7) at bottom of seat cushion (1) | Vehicles with code (PA1) Seat Comfort Package. | |
| 9 | Unclip electrical connector (6) and disconnect | ||
| 10 | Disconnect electrical connector (8) from front passenger seat connector block (X55/4) | ||
| 11 | Disconnect electrical connector (10) from front seat | Vehicles with code (PA1) Seat Comfort Package. | |

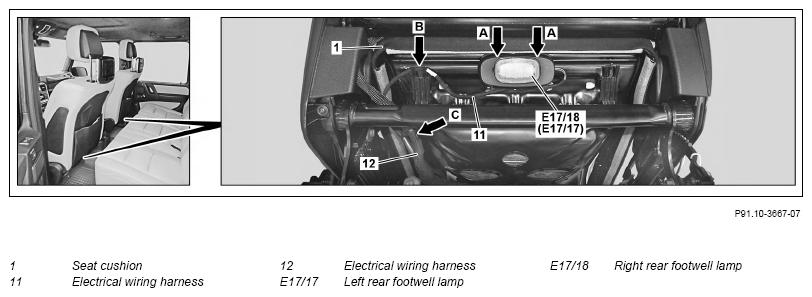

| 12 | Lift seat cushion (1) at rear and unclip right rear footwell lamp (E17/18) or left rear footwell lamp (E17/17) from seat cushion (1) (arrows A) | ||
| 13 | Unclip electrical wiring harness (11) on seat cushion (1) from holder (arrow B) | ||
| 14 | Unclip electrical wiring harness (12) from bottom of seat cushion (1) (arrow C) | ||
| 15 | Expose electrics line belonging to the seat cushion (1) on the seat adjustment mechanism | ||
| 16 | Remove screws (3) | ||
| 17 | Unclip bracket (4) and remove | ||
| 18 | Fold up bearing shells (5) | ||
| 19 | Remove seat cushion (1) | ||
| 20 | Install in the reverse order |
