Overview Of System Components For Pre-Safe (R) - GF91.40-P-9997GW
Model 463 (except 463.342)
as of model year 2019

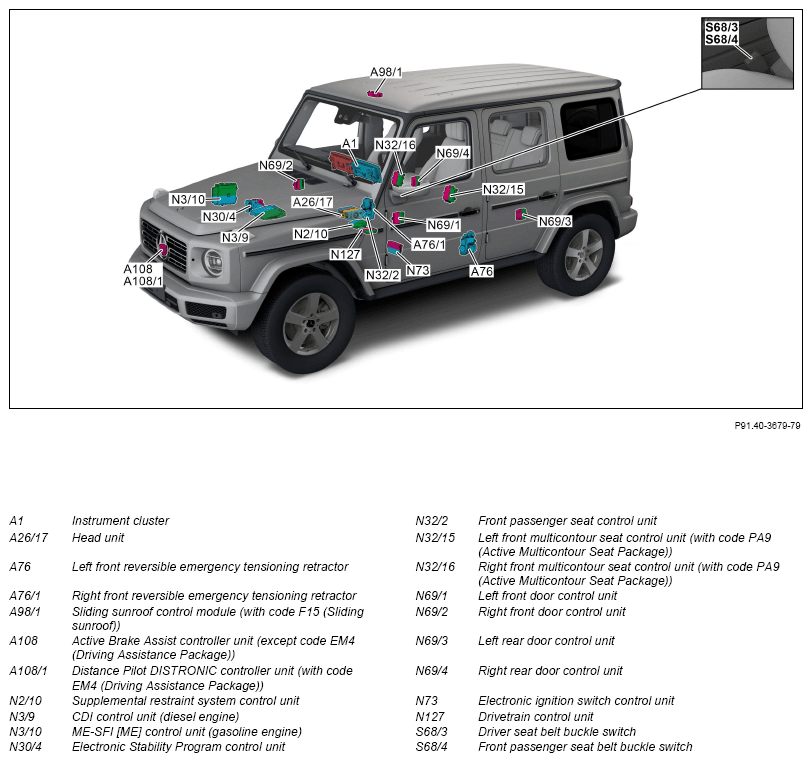

Overview of system components
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Head unit, component description | A26/17 | GF82.85-P-3140GW | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020GW | |
| Component description for sliding roof control module | Model 463 (except 463.342) as of model year 2019 with code F15 (Sliding sunroof) A98/1 | GF77.20-P-4108GWM | |
| Active Brake Assist controller unit, component description | Model 463 (except 463.342) as of model year 2019 except code EM4 (Driving Assistance package) A108 | GF30.30-P-3222GWM | |
| DISTRONIC Distance-Pilot controller unit, component description | Model 463 (except 463.342) as of model year 2019 with code EM4 (Driving Assistance package) A108/1 | GF30.30-P-3218GWM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GWM | |
| Component description for CDI control unit | Model 463 (except 463.342) with engine 656.9 as of model year 2019 N3/9 | GF07.16-P-6000OIB | |
| Component description for ME-SFI (ME) control unit | Model 463 (except 463.342) with engine 176.9, 177.9 as of model year 2019 N3/10 | GF07.61-P-6000MNH | |
| Component description for Electronic Stability N30/4 Program control unit | GF42.45-P-5119GWM | ||
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241GW | |
| Multicontour seat control unit (MCS), component description | Model 463 (except 463.342) as of model year 2019 with code PA9 (Active Multicontour Seat package) N32/15, N32/16 | GF91.25-P-5201GWM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for rear door control unit | Model 463.23/24/27, 463.34 (except 463.342) as of model year 2019 Model 463.26 as of model year 2019 N69/3, N69/4 | GF72.29-P-6021GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GWM | |
| Drivetrain control unit, component description | Model 463 (except 463.342) with engine 656.9 as of model year 2019 N127 | GF54.21-P-2141OIB | |
| Model 463 (except 463.342) with engine 176.9, 177.9 as of model year 2019 N127 | GF54.21-P-2141MNH | ||
| Table of contents for function description of PRE-SAFE (R) | GF91.40-P-0997GW |
