Remove/Install Refrigerant Pressure Sensor - AR83.30-P-5430XGA
Model 463 with engine 176, 177
as of model year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove/install | |||
| 1 | Discharge air conditioning system. | AR83.30-P-1760XG | |
| 2 | Remove bumper. | AR88.20-P-2000XG | |
| 3 | Remove front lower engine compartment lining. | AR61.20-P-1105XG | |
| 4 | Remove lower air duct segment in the area of the refrigerant pressure sensor (B12). | ||

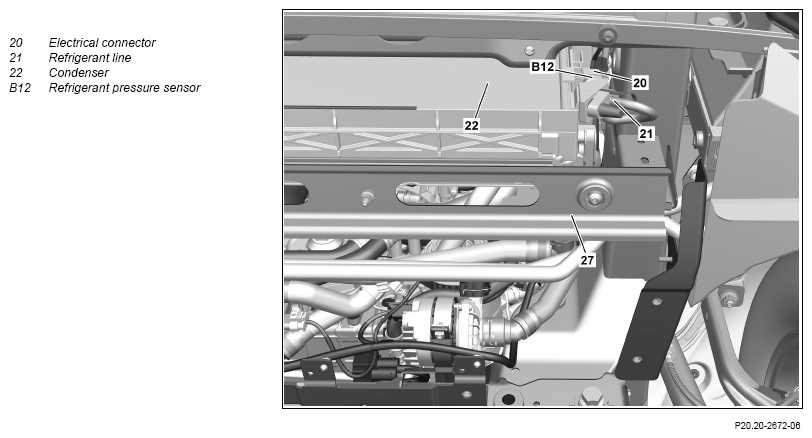

| 5 | Remove refrigerant line (21) from condenser (22), hang to one side inward and seal openings with suitable stop plugs | ||
| *BA83.30-P-1005-01C | |||
| Fig 2 | |||
| 6 | Disconnect electrical connector (20) from refrigerant pressure sensor (B12). | ||
| 7 | Remove refrigerant pressure sensor (B12). | *BA83.30-P-1019-01C | |
| Fig 1 | |||
| 8 | Install in the reverse order. |
AIR CONDITIONING
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA83.30-P-1005-01C | High-pressure line to condenser | Nm | 8 |
AIR CONDITIONING
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA83.30-P-1019-01C | Pressure sensor to condenser | Nm | 10 |
