Remove/Install Expansion Valve - AR83.30-P-5520GW

Model 463

as of model year 2013 up to model year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0006-01A
	Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0007-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
	Notes on handling refrigerant R134a		AH83.30-N-0003-01A
	Notes on handling refrigerant R1234yf		AH83.30-P-0003-02A
	Remove/install
1	Remove air conditioner housing.	Model 463.202/234/237/239/272/273/274/275/342/346/348 as of model year 2013 up to model year 2019	AR83.30-P-5200GW

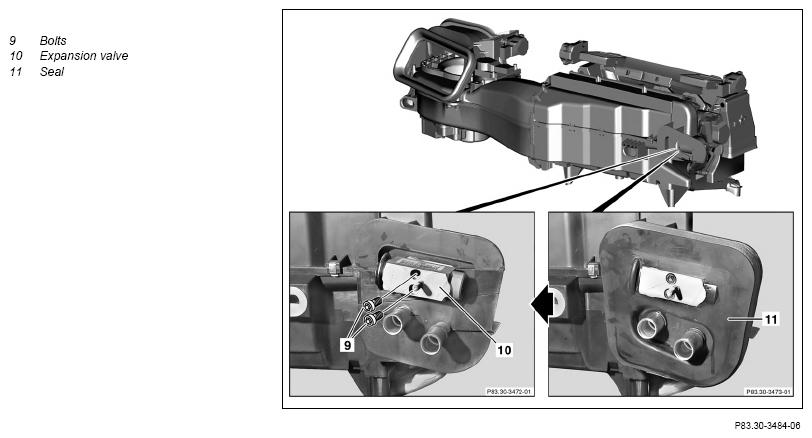

2	Remove seal (11).
3	Check seal (11) for damage.	If seal (11) is damaged, ↓ Replace seal (11).
4	Remove screws/bolts (9).	Screws (9) must be screwed-in alternately. Otherwise, the expansion valve (10) may be tilted on the connection fitting. Bolt, expansion valve	*BA83.30-P-1016-01C
5	Remove expansion valve (10).
	Compressor oils (specification 362.1)		BB00.40-P-0362-01A
		Sealing rings must be replaced and moistened with compressor oil.
6	Seal openings of expansion valve (10) and refrigerant lines using suitable stop plugs.	The openings of the expansion valve (10) and refrigerant lines must be sealed. Otherwise, ingressed dirt and moisture will damage the air conditioning system.
		Record plug	Fig 1
7	Install in the reverse order.

Fig 1: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
