Remove/Install Condenser - AR83.30-P-6540XGA
Model 463 with engine 176, 177
as of model year 2019
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove cooling module. | Model 463 with engine 176 as of model year 2019 |
AR20.20-P-4000XGA |
| Model 463 with engine 177 as of model year 2019 |
AR20.20-P-4000XGC | ||

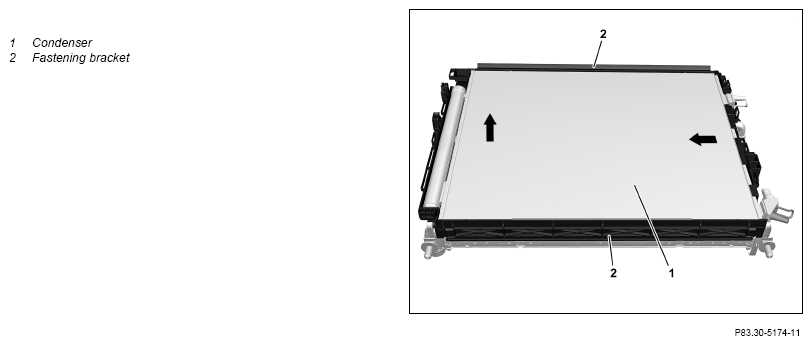

| 2 | Unclip condenser (1) in area of receiver drier upwards (arrow) from the mounting support (2). | ||
| 3 | Remove condenser (1) towards left (arrow) from mounting support (2). | ||
| 4 | Install in the reverse order. |
