Remove/Install Condenser - AR83.30-P-6540GWA

Model 463 with engine 176

as of model year 2016 up to model year 2019

Model 463 with engine 642.887

as of model year 2016 up to model year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0006-01A
	Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0007-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Notes on handling refrigerant R134a		AH83.30-N-0003-01A
	Notes on handling refrigerant R1234yf		AH83.30-P-0003-02A
	Remove/install
1	Drain air conditioning system	Model 463 (except 463.270/271) with engine 176 as of model year 2016 up to model year 2019 Model 463 (except 463.270/271) with engine 642.887 as of model year 2016 up to model year 2019	AR83.30-P-1760GW
2	Remove line for power steering system cooling (6)	Model 463 (except 463.322/323) with engine 176 as of model year 2016 up to model year 2019 Model 463 (except 463.322/323) with engine 642.887 as of model year 2016 up to model year 2019	AR46.25-P-3010GW
3	Unscrew nuts (4, 8)	Line, compressor to condenser	*BA83.30-P-1003-01C
		Line, condenser to fluid reservoir	*BA83.30-P-1004-01C
4	Detach refrigerant lines (3, 7) at condenser (1) and place to one side
	Compressor oils (specification 362.1)	Sealing rings must be replaced and moistened with compressor oil.	BB00.40-P-0362-01A
5	Seal openings of refrigerant lines (3, 7) and at condenser (1) with suitable stop plugs	Open connections on the air conditioning system must generally be sealed. Otherwise, ingressed dirt and moisture will damage the air conditioning system. Record plug	Fig 1

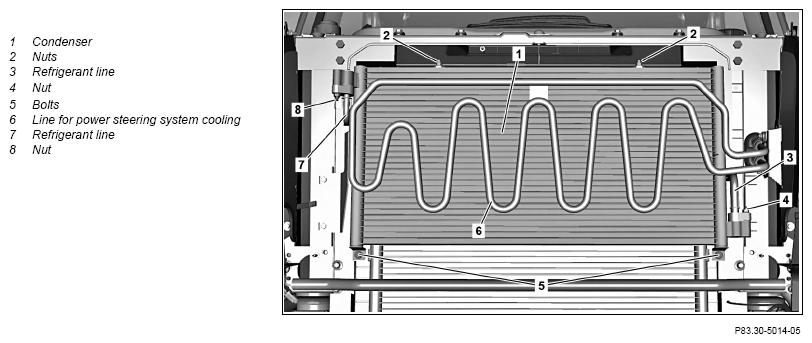

6	Remove screws/bolts (5)
7	Unscrew nuts (2)
8	Secure condenser (1) against falling down
9	Remove condenser (1)
10	Install in the reverse order

Fig 1: Identifying Record Plug (129 589 00 91 00)
