Lift/Jack Up Vehicle With 2-Column Lifting Platform Or With Supporting Arms - AR00.60-P-1001G
Model 460
Model 461 (except 461.227/321/322/323/324/325/327/329/343/345/346/347/348/349/370/371/390/391/392/405/458/459)
Model 463
as of Model year 2013 up to Model year 2019
Shown on Model 463.249 with 2850 mm wheelbase
| Risk of death or serious injury caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove side running boards if necessary | Model 463.222/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/341 as of Model year 2013 up to Model year 2019 with code T84 (Side running boards) except code PA3 (Exterior Stainless Steel package) Model 463.242 as of Model year 2013 up to Model year 2015 |
AR88.30-P-2400GR |
| Model 463 (except Model 463.242) as of Model year 2013 up to Model year 2019 with code PA3 (Exterior Stainless Steel package) except code T84 (Side running boards) |
AR88.30-P-2400GW | ||

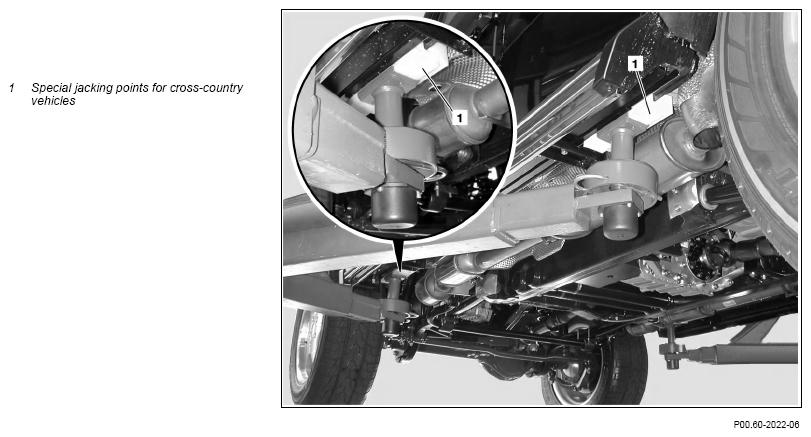

| 2 | Lift/jack up vehicle | Lift vehicle using special supports for cross- country vehicles (1) at provided vehicle lift support points. Otherwise the vehicle may tip from the vehicle lift. On vehicles with code (979) Special protection version and fire extinguishing system, make sure that the distributor lines are not damaged. Otherwise a malfunction of the fire extinguishing system may occur. |
