Remove/Install Side Step - AR88.30-P-2400GW
Model 463 (except 463.242)
as of model year 2013 up to model year 2019
with code PA3 (Exterior Stainless Steel package)
except code T84 (Side running boards)
Shown on right front vehicle

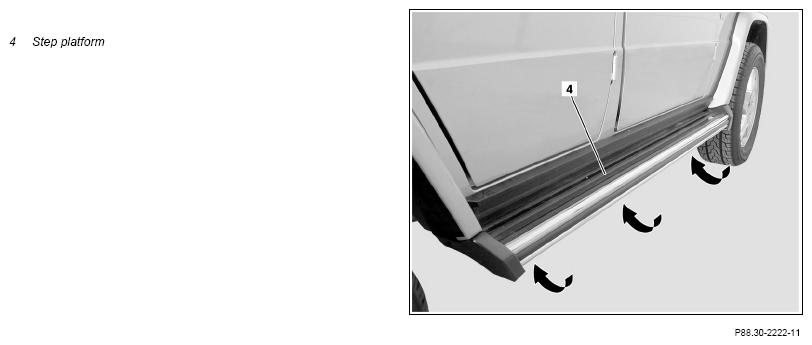

Fig 1: Side Step Platform Components Location - Model 463 (Except 463.242) As Of Model Year 2013 Up To Model Year 2019 With Code PA3 Except Code T84
| Remove/install | |||

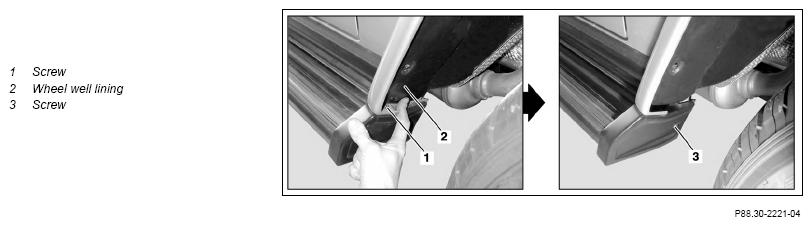

| 1 | Press in wheel well panel (2) and unscrew bolt (1) from fender flare | ||
| 2 | Remove screw/bolt (3) | ||
| 3 | Remove running board (4) from bracket | ||
| 4 | Remove running board (4). | ||
| 5 | Install in the reverse order |
