Remove/Install Drive Plate - AR03.30-P-8003XGC

Engine 177 in model 463

as of model year 2019

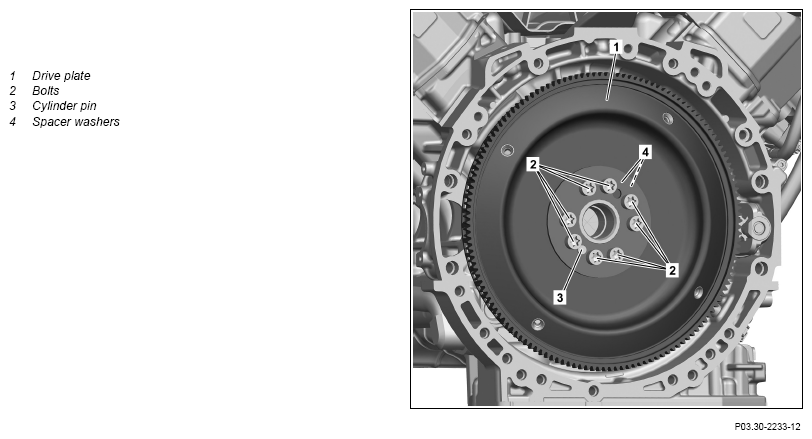

Fig 1: Drive Plate Components Location - Engine 177 In Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove/install
1	Remove the transmission with torque converter.		AR27.10-P-0500XGC
2	Install retaining lock		AR03.30-P-5001XGC
3	Remove screws/bolts (2).	Install new screws (2) and tighten crosswise. Bolt, drive plate to crankshaft	*BA03.30-P-1003-01W
4	Remove drive plate (1) with spacer disks (4).	The cylinder pin (3) determines the installation position of the drive plate (1) and spacer disks (4).
5	Mark installation location of the inner and outer spacer disk.
	Check
6	Check drive plate (1) for damage.	When reusing the drive plate (1). If complaints are present, ↓ Install new drive plate (1).
7	Check spacer disks (4) for damage.	When reusing the spacer disks (4). If complaints are present, ↓ install new spacer disks (4).
8	Install in the reverse order.

FLYWHEEL, VIBRATION DAMPER

Number	Designation			Engine 177
BA03.30-P-1003-01W	Bolt, drive plate to crankshaft	Stage 1	Nm	20
		Stage 2	Nm	45
		Stage 3	∠°	90
