Remove/Install Front Cover On Right Cylinder Head - AR01.30-P-5712MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

Shown on ENGINE 177

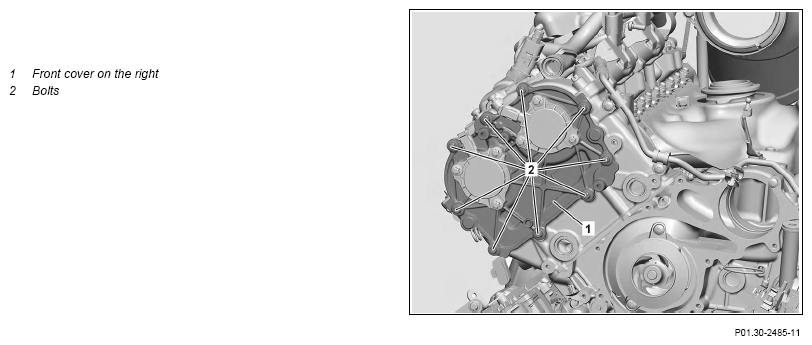

Fig 1: Front Cover On Right Cylinder Head Components Location - Engine 176 In Model 463 Up To Model Year 2019 (Shown On Engine 177)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Notes on working in engine compartment	Engine 178 in model 190	AH60.00-P-0042-01 RG
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
	Remove
1	Remove right oil separator.	Engine 178.9 in model 190.381	AR01.20-P-7902MNJ
		Engine 178 in model 190 (except 190.381)	AR01.20-P-9750MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205	AR01.20-P-9750MNA
2	Release and disconnect electrical connectors of right intake camshaft solenoid (Y49/5) and right exhaust camshaft solenoid (Y49/7).	Engine 178 in model 190
3	Remove screws (2).
4	Carefully loosen right front cover (1) at prying lugs and pull off to the front.	Do not drive any tools between the right front cover (1) and the right cylinder head cover or right cylinder head to loosen. The sealing surface will be damaged otherwise.
5	Remove right intake camshaft solenoid (Y49/5) and right exhaust camshaft solenoid (Y49/7).	Only when replacing the right front cover (1).
		Engine 178.9 in model 190.381	AR05.20-P-0005MNJ
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 Engine 178 in model 190 (except 190.381)	AR05.20-P-7295MNA
	Clean
6	Clean sealing surfaces on right cylinder head, right cylinder head cover, and right front cover (1).		AR01.00-P-0050-01A
	Notes on application of flange sealants to seal major assemblies		AH00.00-P-0500-01MNE
		Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can be damaged otherwise.
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
7	Install right intake camshaft solenoid (Y49/5) and right exhaust camshaft solenoid (Y49/7).	Only when replacing the right front cover (1).
		Engine 178.9 in model 190.381	AR05.20-P-0005MNJ
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 Engine 178 in model 190 (except 190.381)	AR05.20-P-7295MNA
8	Apply sealant to right front cover (1).
	Notes on sealant path for front cover to cylinder head xxx		AH01.30-P-1000-02MM
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Application gun	Fig 2
9	Position right front cover (1) on cylinder head and cylinder head cover.
10	Tighten screws (2).	Replace screws (2).
		Bolt, chain case cover to cylinder head	*BA01.30-P-1002-01N
11	Connect electrical connectors of right intake camshaft adjustment solenoid (Y49/5) and right exhaust camshaft adjustment solenoid (Y49/7) and lock.
12	Install right oil separator.	Engine 178.9 in model 190.381	AR01.20-P-7902MNJ
		Engine 178 in model 190 (except 190.381)	AR01.20-P-9750MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205	AR01.20-P-9750MNA
	Check
13	Check engine oil level and correct if necessary.
		Engine 177 in model 205 Engine 178 in model 190	AP18.00-P-1811MP
		Engine 176 in model 463 up to model year 2019	AP18.00-P-0101GE
	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
14	Perform engine test run. While doing so, check engine for proper operation and leak tightness

Fig 2: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA
