Remove/Install Bottom Part Of Oil Pan - AR01.45-P-7555MNF
Engine 176 in model 463
up to model year 2019
MODIFICATION NOTES
| 28.06.2018 | Screw, oil pan bottom section to oil pan center section/oil pan top section | BA01.45-P-1006-01Y |
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Detach ground line from battery | Engine 176 in model 463 up to model year 2019 | |
| Engine 176 in model 463 (except 463.234) as of model year 2013 up to model year 2019 |
AR54.10-P-0003GW | ||
| 2 | Remove lower engine compartment paneling | Engine 176 in model 463 as of model year 2016 up to model year 2019 except code ZQ0 (G 500 4x42) |
AR61.20-P-1105GW |
| 3 | Drain engine oil | ||
| AP18.00-P-0101GE | |||

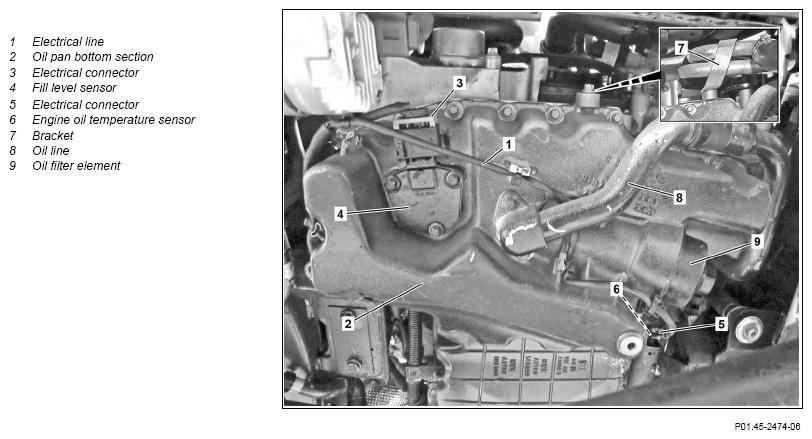

| 4 | Unclip electrical line (1) at oil pan bottom section (2) | ||
| 5 | Detach electrical connection (3) from fill level sensor (4) | ||
| 6 | Disconnect electrical connection (5) on engine oil temperature sensor (6) | ||
| 7 | Unfasten front circulation pump for low-temperature circuit with bracket and place with attached lines to one side | AR09.41-P-6925MNF | |
| 8 | Detach bracket (7) for oil lines | ||
| 9 | Remove oil line (8) from oil pan bottom section (2) | *BA01.45-P-1001-01Y | |
| 10 | Unscrew oil filter element (9) | *BA01.45-P-1002-01Y | |
| 11 | Remove screw/bolts (10) | *BA01.45-P-1006-01Y | |

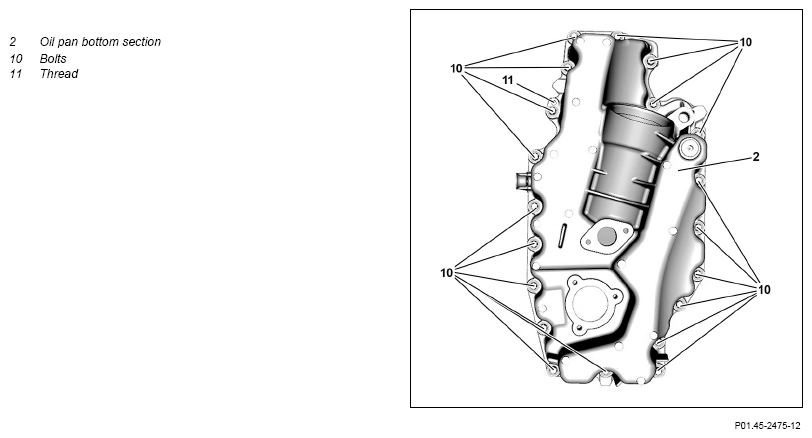

| 12 | Screw screw/bolt into the thread (11) and pry oil pan bottom section (2) off oil pan top section | ||
| 13 | Remove oil pan bottom section (2) downwards | ||
| 14 | Clean sealing surfaces for oil pan bottom section (2) and the oil pan top section | Do not use sharp-edged tools. The sealing surfaces can be damaged otherwise. |
|
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| 15 | Remove fill level sensor (4) | When installing new oil pan bottom section (2) | |
| AR18.40-P-5116MNA | |||
| 16 | Remove engine oil temperature sensor (6) | When installing new oil pan bottom section (2) | |
| AR18.40-P-4124MNA | |||
| 17 | Install in the reverse order |
OIL PAN
| Number | Designation | Engine 176 in model 167, 463 | |
|---|---|---|---|
| BA01.45-P-1001-01Y | Bolt, oil line to oil pan/crankcase/engine support | Nm | 8 |
OIL PAN
| Number | Designation | Engine 176 in model 167, 463 | |
|---|---|---|---|
| BA01.45-P-1002-01Y | Oil filter cover to oil pan | Nm | 25 |
OIL PAN
| Number | Designation | Engine 176 in model 167, 463 | |
|---|---|---|---|
| BA01.45-P-1006-01Y | Screw, oil pan bottom section to oil pan center section/oil pan top section | Nm | 12 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
