Remove/Install Circulation Pump For Low-Temperature Water Circuit - AR09.41-P-6925MNF
Engine 176 in model 463
up to model year 2019
Engine 642 in model 463
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit | AR09.41-P-6834MNF | |

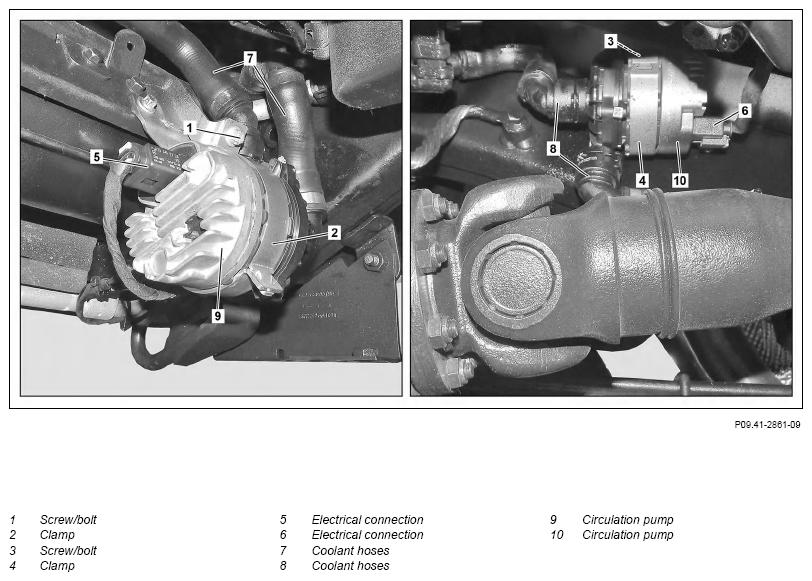

| 2 | Remove screw/bolt (1) and clamp (2) | When removing the circulation pump (9). | |
| 3 | Remove screw/bolt (3) and clamp (4) | When removing the circulation pump (10). | |
| 4 | Disconnect electrical connection (5) | When removing the circulation pump (9). | |
| 5 | Disconnect electrical connection (6) | When removing the circulation pump (10). | |
| 6 | Detach coolant hoses (7) | When removing the circulation pump (9). | AR20.20-P-7441-01RQ |
| 7 | Detach coolant hoses (8) | When removing the circulation pump (10). | AR20.20-P-7441-01RQ |
| 8 | Remove circulation pump (9) downwards | When removing the circulation pump (9). | |
| 9 | Remove circulation pump (10) downwards | When removing the circulation pump (10). | |
| 11 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform an engine test run, check low-temperature circuit cooling system for proper function |
