Remove/Install Boost Pressure Sensor Downstream Of Throttle Valve - AR09.41-P-0004MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205

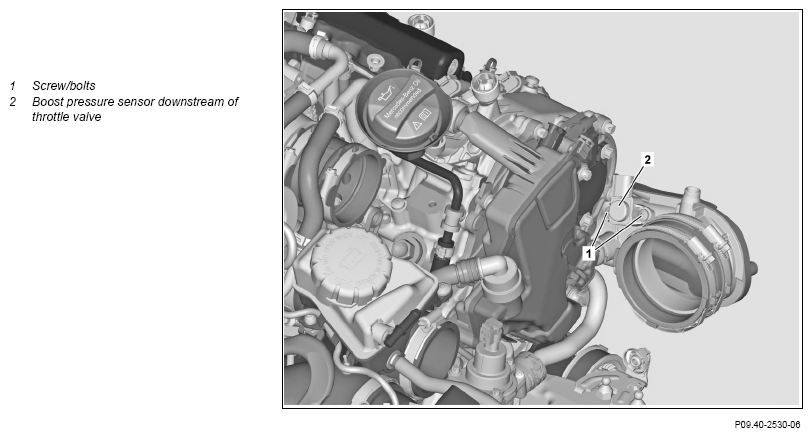

Shown on left boost pressure sensor downstream of throttle valve (2)
Fig 1: Boost Pressure Sensor Downstream Of Throttle Valve Components Location - Engine 176 In Model 463 Up To Model Year 2019
| Remove/install | |||
| 1.1 | Remove left charge air cooler | When removing left-hand boost pressure sensor downstream of throttle valve (2). Engine 176 in model 463 up to model year 2019 | AR09.41-P-8683MNF |
| Engine 177 in model 205 | AR09.41-P-6827MNA | ||
| 1.2 | Remove charge air cooler | When removing right-hand boost pressure sensor downstream of throttle valve (2). Engine 176 in model 463 up to model year 2019 | AR09.41-P-8683MNF |
| 1.3 | Remove right charge air distributor | Engine 176 in model 463 up to model year 2019 When removing right-hand boost pressure sensor downstream of throttle valve (2). | AR09.41-P-8683MNF |
| 2 | Disconnect electrical connection for left boost pressure sensor downstream of throttle valve (2) | Engine 176 in model 463 up to model year 2019 When removing left-hand boost pressure sensor downstream of throttle valve (2). | |
| 3 | Remove screw/bolt (1) | *BA09.41-P-1005-01X | |
| 4 | Remove left or right boost pressure sensor downstream of throttle valve (2) upwards | ||
| Check | |||
| 5 | Check O-ring of left or right boost pressure sensor downstream of throttle valve (2) for damage | In case of damage on the O-ring ↓ Replace left or right boost pressure sensor downstream of throttle valve (2) |
|
| 6 | Install in the reverse order | ||
| 7 |
Connect diagnostic system and read out fault memory | Engine 176 in model 463 up to model year 2019 | AD00.00-P-2000-04A |
| Engine 177 in model 205 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check engine for proper operation and leaktightness |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA09.41-P-1005-01X | Bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 | 6 |
