Remove/Install Left Catalytic Converter - AR49.20-P-0101XGC

Engine 177 in model 463

as of model year 2019

Shown with code KA4 (gasoline particulate filter)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown with code KA3 (gasoline particulate filter (OPF) with sensor system)

Courtesy of MERCEDES-BENZ USA

Shown on firewall in front left wheel arch

Courtesy of MERCEDES-BENZ USA

	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove/install
1	Remove automatic transmission with torque converter.	: Only install lower engine compartment paneling after leak test.	AR27.10-P-0500XGC

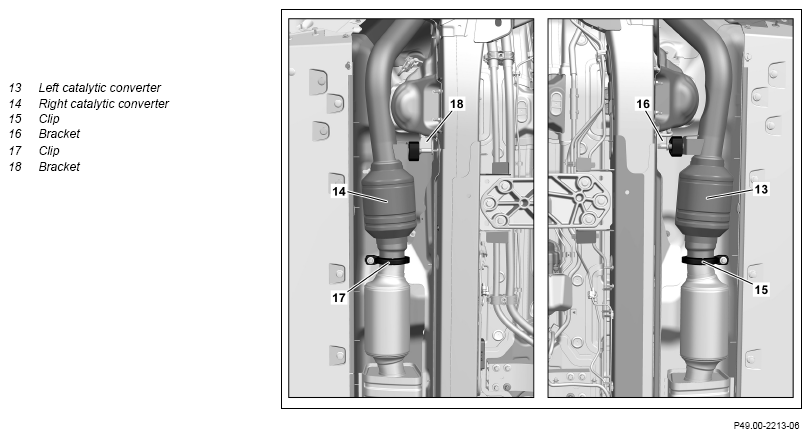

2	Remove clamps (15, 17) from right rear muffler and left rear muffler.	: Exhaust system must be aligned so that it is free of tension before tightening bolted connections. Otherwise, leaks to the exhaust system will occur. : Install new clamps (15, 17).
		Bolt, clamp for front exhaust system to rear exhaust system	*BA49.10-P-1016-02E
3	Secure right rear muffler and left rear muffler against falling down.
4	Unscrew nuts of the brackets (16, 18) of the left catalytic converter (13) and right catalytic converter (14) from the frame.	Nut, bracket for elastomer bearing for front exhaust system to frame	*BA49.10-P-1015-02E
5	Remove fender liner in left front fender.		AR88.10-P-1300XG
6	Remove lambda sensor on left upstream of catalytic converter (G3/3).		AR07.04-P-0081XGC
7	Remove the oxygen sensor on the left downstream of the catalytic converter (G3/5).		AR07.04-P-0082XGC
8	Remove heat shield above the left catalytic converter (13) and right catalytic converter (14).		AR09.40-P-6044XGC

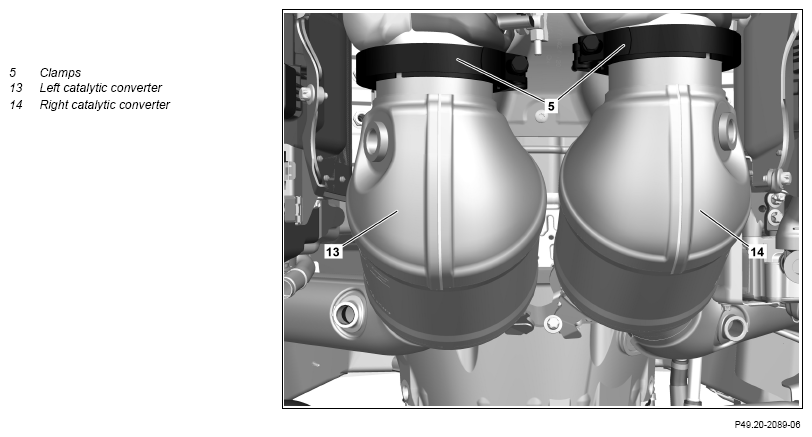

9	Remove clamps (5) of the left catalytic converter (13) and right catalytic converter (14).	: Observe alignment of the clamps (5). Leaks can occur otherwise. : Install new clamps (5).	AR09.40-P-6018-01MNE
		Bolt, piping for inerting to engine/stationary heater	*BA86.10-P-1002-03J
		Clamp, front exhaust system to turbocharger	*BA49.10-P-1001-02E

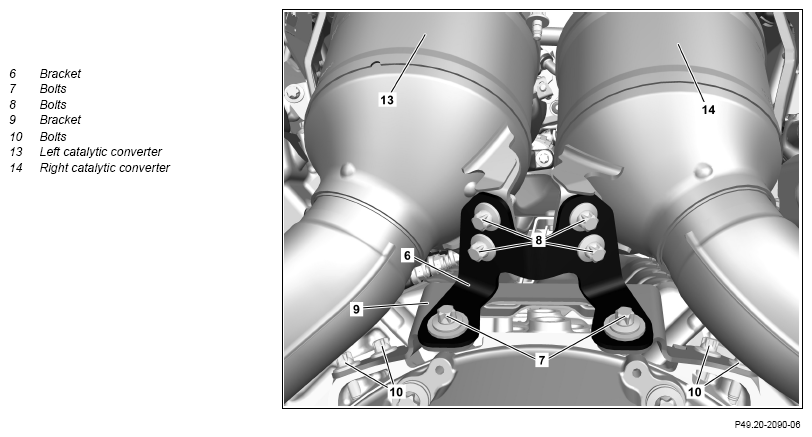

10	Remove screws (8).	Bolt, butterfly bracket to catalytic converter	*BA49.10-P-1003-02E
11	Remove bolts_(7).	Bolt, butterfly bracket to bracket	*BA49.10-P-1002-02E
12	Take out the bracket (6) upward.
13	Unscrew screws (10) from bracket (9). 1/	Bolt, exhaust system bracket to front of crankcase	*BA49.10-P-1006-02E
14	Remove bracket (9).
15	Secure right catalytic converter (14) against falling down.

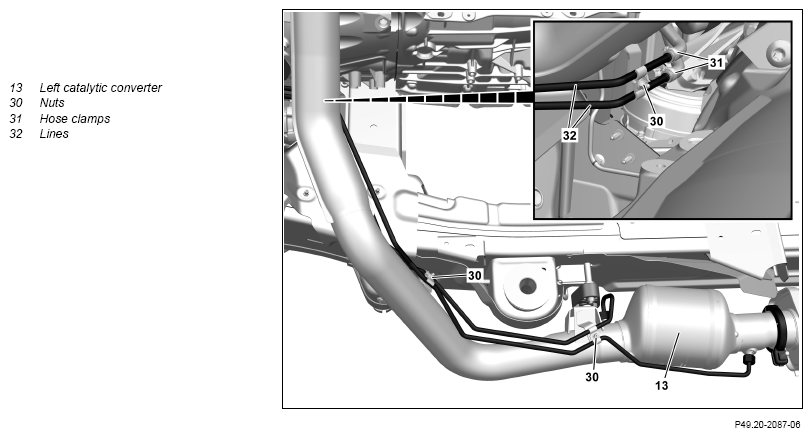

16	Remove hose clamps (31).	Engine 177 in model 463 as of model year 2019 with code KA3 (Gasoline particulate filter (OPF) with sensor system) : Install new hose clamps (31).
		Pliers for click clamps	Fig 2
17	Remove hoses of the lines (32) and seal openings with suitable stop plugs.	Engine 177 in model 463 as of model year 2019 with code KA3 (Gasoline particulate filter (OPF) with sensor system)
		Record plug	Fig 1
18	Unscrew union nuts of the lines (32) from left catalytic converter (13).	Engine 177 in model 463 as of model year 2019 with code KA3 (Gasoline particulate filter (OPF) with sensor system)
		Union nut, pressure line to front exhaust system	*BA49.10-P-1019-02E
19	Unscrew nuts (30).	Engine 177 in model 463 as of model year 2019 with code KA3 (Gasoline particulate filter (OPF) with sensor system)
		Nut, pressure line holder to front exhaust system	*BA49.10-P-1020-02E
20	Remove lines (32) and seal openings with suitable stop plugs.	Engine 177 in model 463 as of model year 2019 with code KA3 (Gasoline particulate filter (OPF) with sensor system)
		Record plug	Fig 1

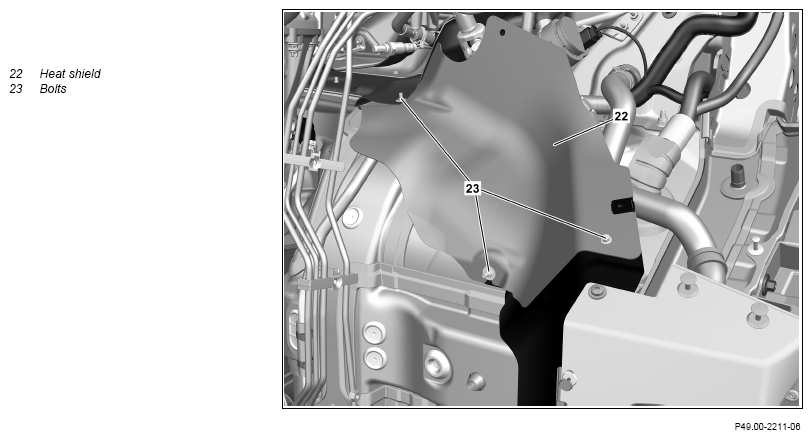

21	Remove screws (23) of the heat shield (22)	M6x1	*BA00.10-P-1002-04A
22	Remove heat shield (22).
23	Remove left catalytic converter (13).
24	Remove combustion and corrosion residues on flange connections.
25	Install in the reverse order.
26	Check installation position and unobstructed movement of the left catalytic converter (13) and right catalytic converter (14).	If there is a problem, ↓ realign left catalytic converter (13) and right catalytic converter (14).
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
27	Perform engine test run to check exhaust system for leaks.
28	Install lower engine compartment lining.		AR61.20-P-1105XG

Fig 1: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Pliers For Click Clamps (171 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
