Remove/Install Heat Shield Of Turbocharger - AR09.40-P-6044XGC
Engine 177 in model 463
as of model year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove ME-SFI control unit (N3/10) and place to one side with the connected coolant lines. | AR07.08-P-7013XGC | |

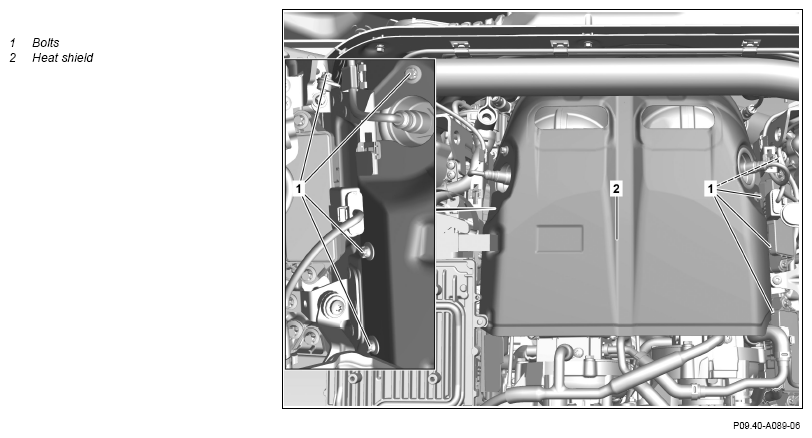

| 2 | Remove bolts (1). | *BA09.40-P-1006-01ZA | |
| 3 | Remove heat shield (2). | ||
| 4 | Install in the reverse order. |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
