Remove/Install Catalytic Converter - AR49.10-P-5500MNF
Engine 176 in model 463
up to model year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Remove engine with transmission | AR01.10-P-2401MNF | |
| 2 |
Remove left complete wheel | For removal of the left CAT (3). | AP40.10-P-4050G |
| 3 |
Remove left complete wheel | For removal of the right CAT (4). | AP40.10-P-4050G |

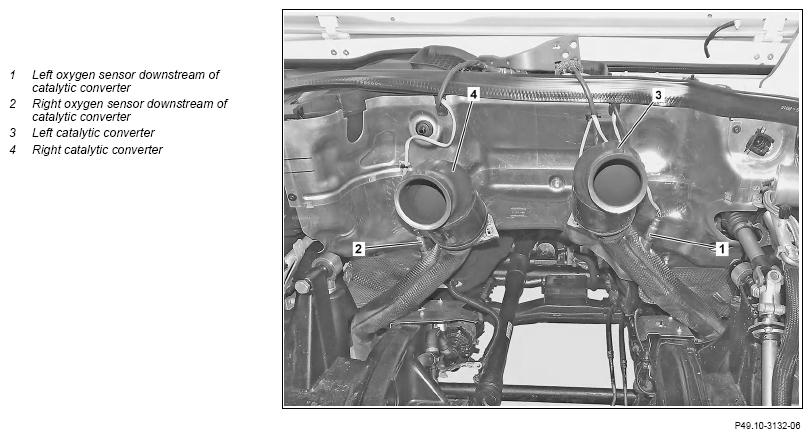

| 4 | Remove left oxygen sensor downstream of catalytic converter (1) | For removal of the left CAT (3). | AR07.04-P-0021MNF |
| 5 | Remove right oxygen sensor downstream of catalytic converter (2) | For removal of the right CAT (4). | AR07.04-P-0021MNF |
| 6 | Remove left rear muffler | For removal of the left CAT (3). | AR49.10-P-4951GW |
| 7 | Remove right rear muffler | For removal of the right CAT (4). | AR49.10-P-4951GW |
| 8 | Retract left CAT (3) out of elastomer bearing and pull out downwards | For removal of the left CAT (3). | |
| 9 | Retract right CAT (4) out of elastomer bearing and pull out downwards | For removal of the right CAT (4). | |
| 10 | Detach the left catalytic converter (3) | When replacing the left catalytic converter (3). | |
| 11 | Detach the right catalytic converter (4) | When replacing the right catalytic converter (4). | |
| 12 | Install in the reverse order |
