Remove/Install Right Fuel Rail With Fuel Injectors - AR07.03-P-1051XGA

Engine 176 in model 463

as of model year 2019

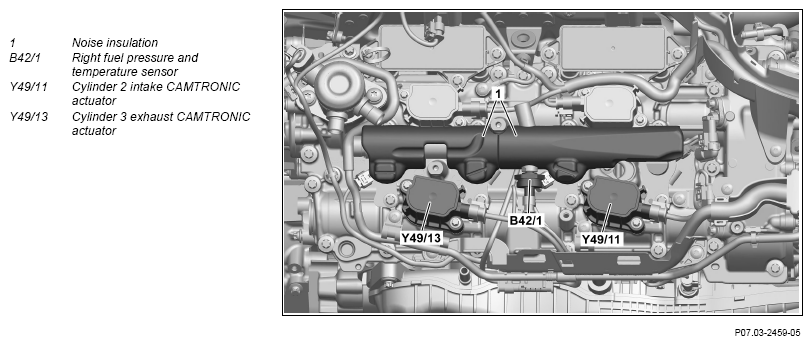

G13656020Courtesy of MERCEDES-BENZ USA

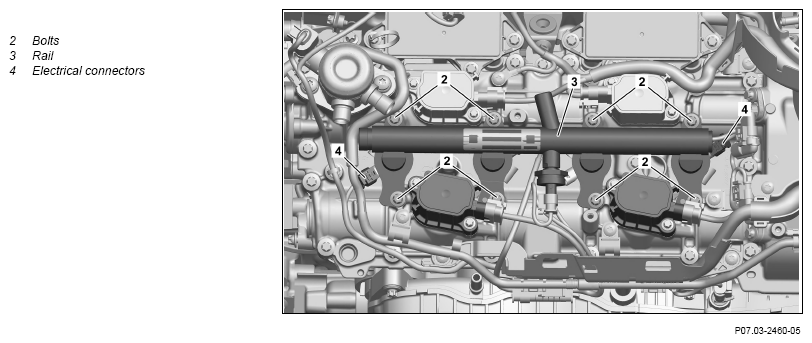

G13656021Courtesy of MERCEDES-BENZ USA

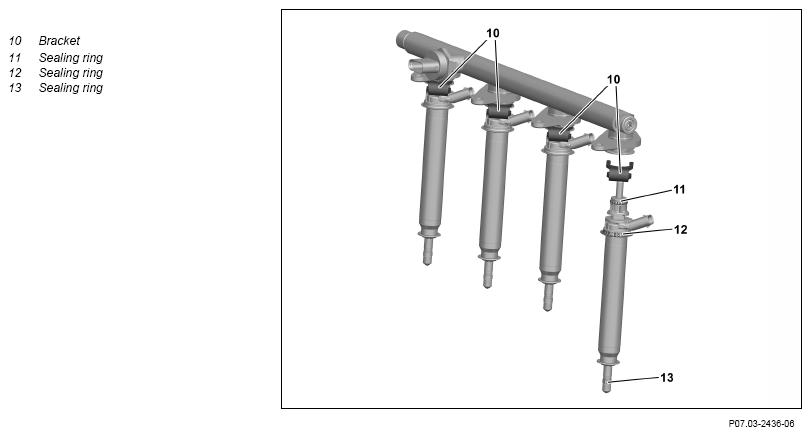

G13656022Courtesy of MERCEDES-BENZ USA

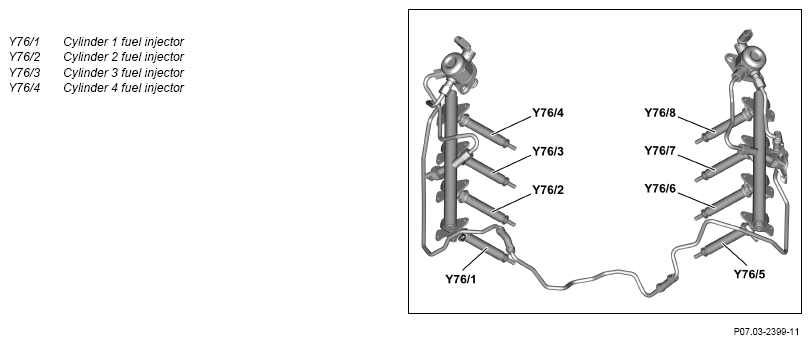

G13656023Courtesy of MERCEDES-BENZ USA
  Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel as well as risk of injury  to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVING Remove
1 Remove right high-pressure line   AR07.03-P-1002XGA
2 Remove right low-pressure line from fuel high- pressure pump and right cylinder head cover and place outside working area with hose connection attached   AR07.03-P-1121XGA
3 Remove noise insulation (1)
4 Release and disconnect electrical connector of cylinder 2 intake CAMTRONIC actuator (Y49/11)
5 Release and disconnect electrical connectors (4) of fuel injectors of cylinders 1 and 4 (Y76/1, Y76/4)
6 Remove holders (10) between rail (3) and fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4)
7 Mark fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) in relation to the respective cylinder When reusing the fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
NOTES
When reusing the fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4), they must be inserted into the cylinder in which they were installed before.
Engine damage will occur otherwise.

8 Unscrew screws (2) on rail (3) NOTES
Remove screws (2) alternately by half a revolution each. Start in center of rail (3) and work outwards.
The rail (3) will otherwise be damaged.

9 Remove rail (3) from fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) and seal openings with suitable stop plugs SPECIAL TOOL Record plug Fig 3
10 Remove fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) from cylinder head and seal injector well bores with suitable stop plugs   AR07.03-P-0004-03MM
    SPECIAL TOOL Puller Fig 1
    SPECIAL TOOL Plug Fig 2
11 Check fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) for damage and replace if necessary When reusing the fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
INSTALLING Install
12 Clean fuel connections on fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) NOTES
If fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) are replaced they must be installed immediately after the transport protection caps are removed.
Leaks can occur otherwise.
NOTES
For cleaning the fuel connections, hold downwards.
Otherwise, the fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) will fail.

    Assembly cleaner *BR00.45-Z-1028-04A
13 Replace sealing packages of fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) on rail (3)   AR07.03-P-0004-02MM
    Assembly cleaner *BR00.45-Z-1028-04A
    SPECIAL TOOL Drift Fig 4
14 Replace sealing rings (11, 12) on fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4)
15 Replace sealing rings (13) on fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4)   AR07.03-P-0004-01MM
    Assembly cleaner *BR00.45-Z-1028-04A
    SPECIAL TOOL Assembly tool Fig 5
16 Install fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) in the rail (3) and secure with holders (10) NOTES
When reusing the fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) they must be inserted into the cylinder in which they were installed before.
Engine damage will occur otherwise.
IMPORTANT Replace brackets (10).

17 Read off injector injection quantity adjustment coding on fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) and note down When replacing fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
18 Insert rail (3) with fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4) in right cylinder head
19 Tighten screws (2) on rail (3) NOTES
Screw in screws (2) alternately by half a revolution each. Start in center of rail (3) and work outwards.
The rail (3) will otherwise be damaged.

    TORQUE SPECIFICATION Bolt, fuel distributor to cylinder head cover *BA07.52-P-1001-01J
20 Install right pressure and temperature sensor (B42/1) in rail (3) When replacing the rail (3).
      AR07.04-P-0202XGA
    IMPORTANT Use new right pressure and temperature sensor (B42/1).
21 Connect electrical connectors (4) on fuel injectors of cylinders 1 and 4 (Y76/1, Y76/4) until they lock
22 Connect electrical connector of cylinder 2 intake CAMTRONIC actuator (Y49/11) until it locks
23 Install noise insulation (1)
24 Attach right low-pressure line to right cylinder head cover and fuel high-pressure pump   AR07.03-P-1121XGA
25 Install right high-pressure line   AR07.03-P-1002XGA
26 Read out and erase fault memory
REFER TO SELF DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
27 Store injector injection quantity adjustment coding in engine management control unit When replacing fuel injectors of cylinders 1 to 4 (Y76/1, Y76/2, Y76/3, Y76/4).
REFER TO SELF DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
28 Check fuel high-pressure circuit for leaktightness   AR07.03-P-1010-04MM
REFER TO SELF DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
29 Perform an engine test run and check engine for proper operation and leak tightness
FUEL DISTRIBUTOR

Number Designation Engine 176
BA07.52-P-1001-01J Bolt, fuel distributor to cylinder head cover Nm 9
Fig 1: Identifying Puller (278 589 00 33 00)
G13656024Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Plug (270 589 03 91 00)
G13656025Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G13656026Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Drift (278 589 01 15 00)
G13656027Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Assembly Tool (272 589 00 43 00)
G13656028Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
