Remove/Install Left High-Pressure Fuel Pump - AR07.02-P-1023XGC
Engine 177 in model 463
as of model year 2019

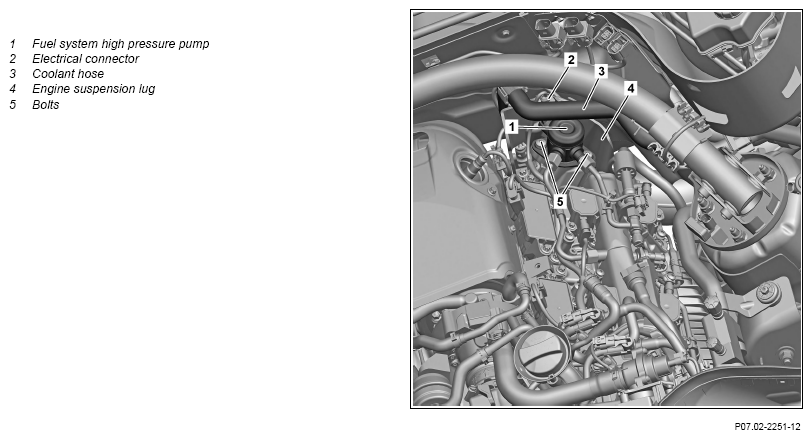

Fig 1: Left High-Pressure Fuel Pump Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove/install | |||
| 1 | Remove left high-pressure line. | AR07.03-P-1001XGC | |
| 2 | Remove left low-pressure line with service connection from left cylinder head cover and fuel high-pressure pump (1). | AR07.03-P-1130XGC | |
| 3 | Remove coolant hose (3) from engine lifting lug (4) and place to one side. | ||
| 4 | Release and disconnect electrical connector (2). | ||
| 5 | Clean area around fuel high-pressure pump (1). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 6 | Remove screws (5) and remove fuel high- pressure pump (1) in upward direction. | Remove/screw in screws (5) alternately by half a turn in each case. Damage will otherwise occur to the fuel high-pressure pump (1). |
|
| *BA07.02-P-1001-01E | |||
| 7 | Install in the reverse order. | ||
| 8 | Read out and delete fault memory. | ||
| AD00.00-P-2000-04B |
INJECTION PUMP, HIGH-PRESSURE FUEL PUMP
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA07.02-P-1001-01E | Bolt, fuel system high pressure pump to cylinder head | Nm | 14 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
