Remove/Install Lower Coolant Expansion Reservoir For Low-Temperature Circuit - AR09.41-P-0060XGA
Engine 176 in model 463
as of model year 2019

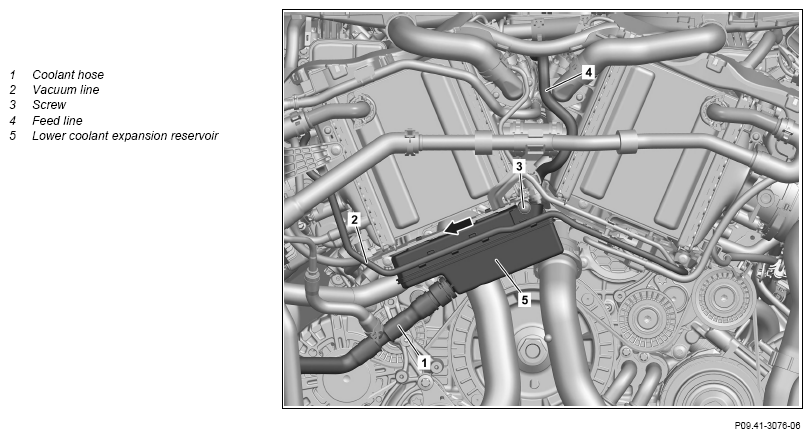

Fig 1: Lower Coolant Expansion Reservoir For Low-Temperature Circuit Components Location - Engine 176 In Model 463 As Of Model Year 2019
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove fan unit. | AR20.40-P-5050XGA | |
| 2 | Remove feed line (4) from upper coolant expansion reservoir for low-temperature circuit and seal openings with suitable stop plugs. | AR20.30-P-0010-02XGA | |
| Fig 3 | |||
| 3 | Remove feed line (4) from lower coolant expansion reservoir (5) and seal openings with suitable stop plugs. | AR20.30-P-0010-02XGA | |
| Fig 3 | |||
| 4 | Remove coolant hose (1) from lower coolant expansion reservoir (5) and seal openings with suitable stop plug; seal protective cover. | AR20.20-P-7441-01RQ | |
| Fig 3 | |||
| Fig 2 | |||
| 5 | Remove screw (3). | *BA09.41-P-1010-01X | |
| 6 | Unclip vacuum line (2) from lower coolant expansion reservoir (5). | ||
| 7 | Move lower coolant expansion reservoir (5) in direction of arrow and remove in upward direction. | ||
| 8 | Install in the reverse order. | ||
| 9 | Check low-temperature circuit for leak tightness. | AR09.41-P-1011XGA | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and in doing so check low-temperature circuit for proper function. | ||
| 11 | Install lower front engine compartment lining. | AR61.20-P-1105XG |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1010-01X | Bolt, low-temperature circuit expansion reservoir at bottom to charge air cooler bracket | Nm | 9 |
