Remove/Install Right Charge Air Distributor - AR09.41-P-8685XGC
Engine 177 in model 463
as of model year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove charge air coolers. | AR09.41-P-6817XGC | |
| 2 | Remove cooling module. | AR20.20-P-4000XGC | |

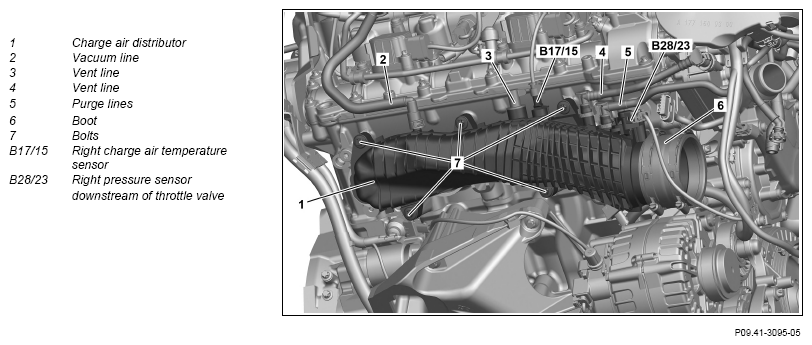

| 3 | Remove vacuum line (2) from charge-air distributor (1) and seal openings with suitable stop plugs and/or protective covers. | Fig 1 | |
| Fig 2 | |||
| 4 | Remove bleed line (4) from charge-air distributor (1) and seal openings with suitable stop plugs and/or protective covers. | Fig 1 | |
| Fig 2 | |||
| 5 | Remove purge line (5) from charge-air distributor (1) and seal openings with suitable stop plugs and/or protective covers. | Fig 1 | |
| Fig 2 | |||
| 6 | Release and disconnect electrical connector at right charge air temperature sensor (B17/15). | ||
| 7 | Release and disconnect electrical connector at pressure sensor downstream of right throttle valve (B28/23). | ||
| 8 | Remove screws (7) and remove charge-air distributor (1) in forward direction. | Tightening procedure for charge air distributor |
AR09.41-P-8683-01MNE |
| *BA09.41-P-1004-01X | |||
| 9 | Remove boot (6) from charge-air distributor (1). | When replacing charge-air distributor (1). |
*BA09.41-P-1002-01X |
| 10 | Remove bleed line (3) from charge-air distributor (1). | When installing a new charge air cooler (1). | |
| 11 | Install in the reverse order. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1002-01X | Bolt, clamp for charge air hose to charge-air distributor | Nm | 6 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 |
