Remove/Install Right Boost Pressure Sensor Upstream Of Throttle Valve - AR09.41-P-1021XGC
Engine 177 in model 463
as of model year 2019

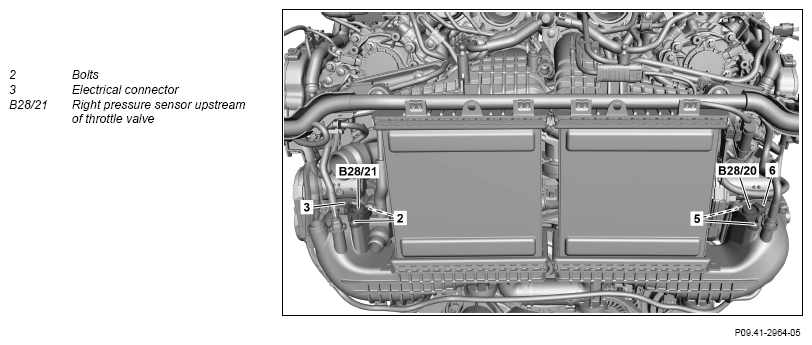

Fig 1: Right Boost Pressure Sensor Upstream Of Throttle Valve Components Location - Engine 177 In Model 463 As Of Model Year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove fan unit. | AR20.40-P-5050XGC | |
| 2 | Release and disconnect electrical connector (3). | ||
| 3 | Remove screws/bolts (2). | *BA09.41-P-1005-01X | |
| 4 | Remove pressure sensor upstream of right throttle valve (B28/21). | ||
| 5 | Seal opening on charge air cooler with suitable stop plug. | Fig 2 | |
| 6 | Install in the reverse order. | ||
| 7 |
Read out and delete fault memory. | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check the engine for proper function. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1005-01X | Bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 |
