Remove/Install Boost Pressure Control Pressure Transducer - AR09.41-P-2004XGA
Engine 176 in model 463 as of model year 2019

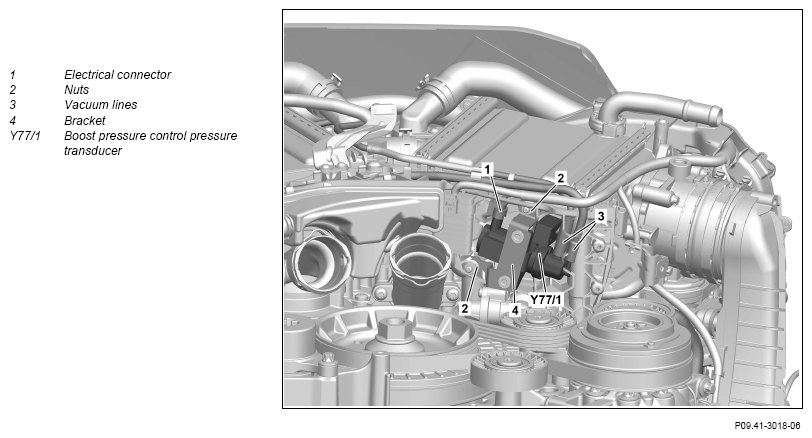

Fig 1: Boost Pressure Control Pressure Transducer Components Location - Engine 176 In Model 463 As Of Model Year 2019
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove front lower engine compartment paneling. | AR61.20-P-1105XG | |
| 2 | Remove mounting console for low-temperature circuit switchover valve. | AR09.41-P-1220-01XGA | |
| *BA61.20-P-1002-01A | |||
| 3 | Remove vacuum lines (3) from boost pressure control pressure transducer (Y77/1) and seal openings with suitable stop plugs. | Fig 2 | |
| 4 | Release electrical connector (1) and disconnect. | ||
| 5 | Unscrew nuts (2) and move boost pressure control pressure transducer (Y77/1) with the bracket (4) downwards and remove it. | *BA09.41-P-1009-01X | |
| 6 | Remove bracket (4) from boost pressure control pressure transducer (Y77/1). | When replacing boost pressure control pressure transducer (Y77/1). | |
| 7 | Install in the reverse order. | ||
| 8 |
Read out and delete fault memory. | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Carry out engine test run and check engine for proper leaktightness and leaktightness. | ||
| 10 | Install front lower engine compartment paneling. | AR61.20-P-1105XG |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1009-01X | Bolt/nut, pressure transducer to bracket/charge air cooler | Nm | 6 |
LOWER ENGINE COMPARTMENT PANELING
| Number | Designation | Model 463 as of model year 2019 |
||
|---|---|---|---|---|
| BA61.20-P-1002-01A | Bolt, mounting rail in lower engine compartment lining (front) to frame | M8 | Nm | 20 |
