Remove/Install Vacuum Pump - AR43.05-P-1320XGC
Model 463 with engine 177
as of model year 2019
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove heat shield from exhaust gas turbocharger. | AR09.40-P-6044XGC | |

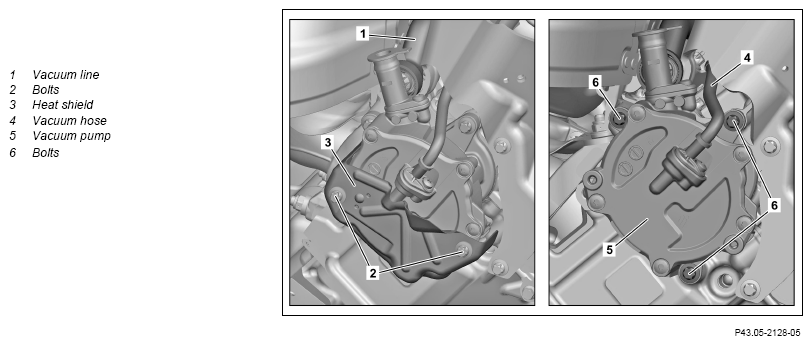

| 2 | Detach vacuum line (1) from vacuum pump (5) and seal openings with suitable stop plugs. | Fig 2 | |
| 3 | Remove screws (2) and remove heat shield (3). 17 | *BA43.05-P-1007-01B | |
| 4 | Disconnect vacuum hose (4) from vacuum pump (5) and seal openings with suitable stop plugs. | Fig 2 | |
| 5 | Remove screw/bolts (6). | *BA43.05-P-1002-01B | |
| 6 | Remove vacuum pump (5) upwards. | ||
| 7 | Install in the reverse order. | ||
8 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out engine test run, while doing so check service brake for proper operation and engine for leak tightness. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 9 | Install upper engine cover. | AR01.10-P-2405XGC |
VACUUM PUMP
| Number | Designation | Model 463 as of model year 2019 | Model 463 up to model year 2019 | |
|---|---|---|---|---|
| BA43.05-P-1002-01B | Bolt, vacuum pump to cylinder head | Nm | 10 | 10 |
VACUUM PUMP
| Number | Designation | Model 463 as of model year 2019 | Model 463 up to model year 2019 | |
|---|---|---|---|---|
| BA43.05-P-1007-01B | Bolt, heat shield to vacuum pump | Nm | - | 9 |
