Remove/Install Vacuum Pump - AR43.05-P-1320XGA
Model 463 with engine 176
as of model year 2019
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove right air filter housing. | AR09.10-P-1152XGA | |
| 2 | Remove engine lifting lug at rear right. | AR01.20-P-5012-02XGA | |
| *BA00.10-P-1002-04A | |||
| *BA01.30-P-1003-01N | |||
| Fig 2 | |||

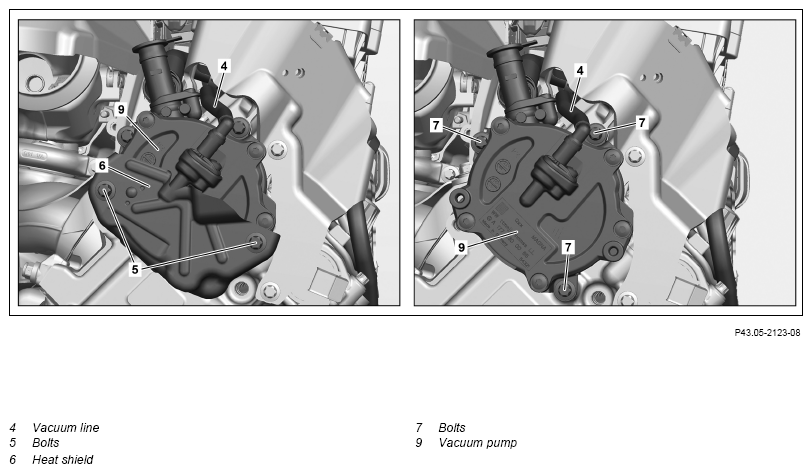

| 3 | Remove vacuum line (4) from vacuum pump (9) and seal openings using suitable stop plugs. | Fig 2 | |
| 4 | Remove bolts (5) and remove heat shield (6). | E3 Bolt, heat shield to vacuum pump | *BA43.05-P-1007-01B |
| 5 | Remove bolts (7) and remove vacuum pump (9). | *BA43.05-P-1002-01B | |
| 6 | Install in the reverse order. | ||
7 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out engine test run, while doing so check service brake for proper operation and engine for leak tightness. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 8 | Install upper engine cover. | AR01.10-P-2405XGA |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
CYLINDER HEAD
| Number | Designation | Engine 176 | ||
|---|---|---|---|---|
| BA01.30-P-1003-01N | Bolt, heat shield/rear lifting eye to cylinder head | M6 | Nm | 9 |
VACUUM PUMP
| Number | Designation | Model 463 as of model year 2019 | Model 463 up to model year 2019 | |
|---|---|---|---|---|
| BA43.05-P-1002-01B | Bolt, vacuum pump to cylinder head | Nm | 10 | 10 |
VACUUM PUMP
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA43.05-P-1007-01B | Bolt, heat shield to vacuum pump | Nm | - | 9 |
