Remove/Install Right Rear Engine Suspension - AR01.20-P-5012-02XGA
Engine 176 in model 463 as of model year 2019
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
CYLINDER HEAD
| Number | Designation | Engine 176 | ||
|---|---|---|---|---|
| BA01.30-P-1003-01N | Bolt, heat shield/rear lifting eye to cylinder head | M6 | Nm | 9 |

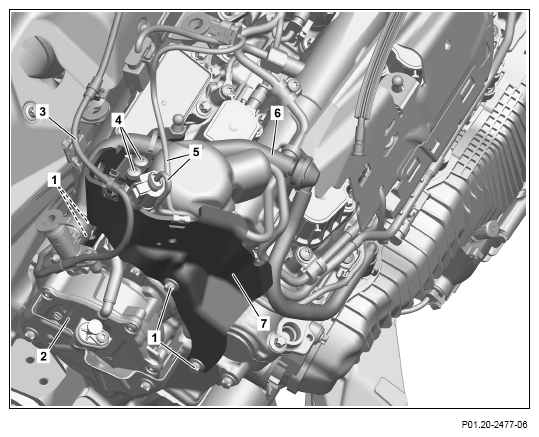

- Open heat shield of vacuum hose (6) at vacuum pump (2).
- Remove vacuum hose (6) from vacuum pump (2) and engine lifting lug (7), place to one side and seal openings with suitable
stop plugs.
: Replace cable tie.
- Remove piping (3) from engine lifting lug (7).
- Remove electric lines (5) from engine lifting lug (7).
- Remove screw/bolts (4)
- Remove screw/bolt (1)
- Remove engine lifting lug (7).
- Install in the reverse order.
