Replace Brake Hoses - AR42.10-P-0013XG
Model 463 as of model year 2019
MODIFICATION NOTES
| 17.05.2019 | Bolt, brake hose to floating brake caliper on front axle/rear axle | Model 463 as of model year 2019 | BA42.10-P-1012-04B |

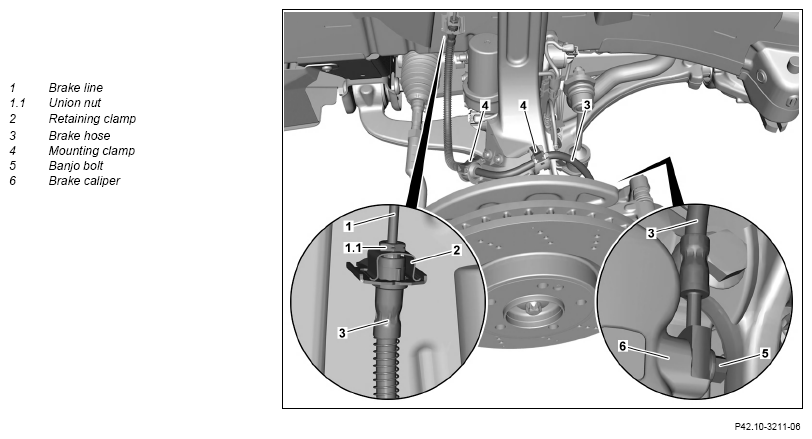

Shown on left front axle with floating brake caliper

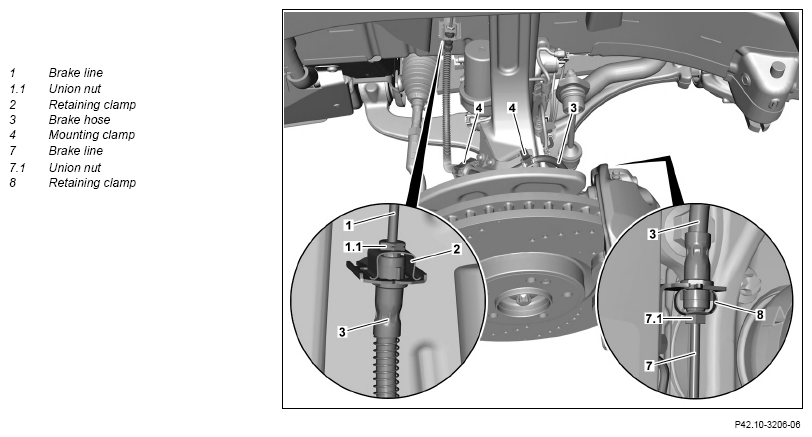

Shown on left front axle with fixed caliper

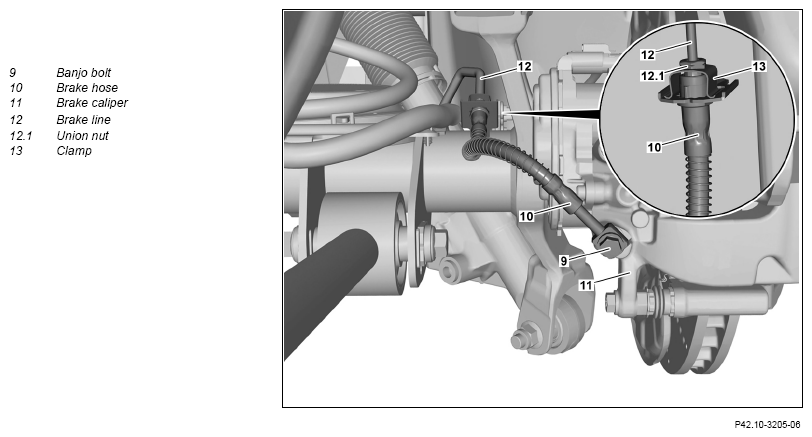

Shown on the outer left rear axle

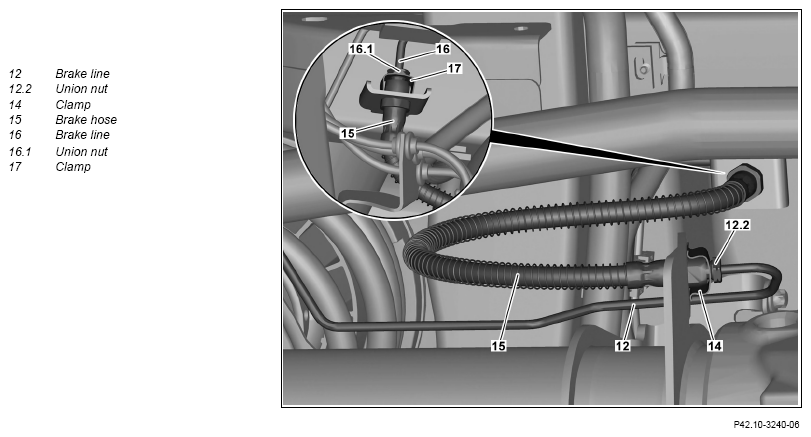

Shown on the inner left rear axle
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on installing brake hoses | AH42.10-P-9406-01XG | ||
| Remove/install | |||
| 1 | Remove corresponding wheel and tire assembly. | AR40.10-P-1102XG | |
| 2 | Unscrew union nut (1.1) of brake line (1) from brake hose (3) and seal openings with suitable stop plugs. | When removing brake hose (3) from front axle with floating caliper brake or fixed-caliper brake. Seal connections immediately. Otherwise damage can be caused by escaping brake fluid. |
|
| *BA42.10-P-1010-04B | |||
| Fig 1 | |||
| 3 | Remove retaining clamp (2). | When removing brake hose (3) from front axle with floating caliper brake or fixed-caliper brake. ↓ replace retaining clamp. |
|
| 4 | Release mounting clamps (4) and expose brake hose (3). | When removing brake hose (3) from front axle with floating caliper brake or fixed-caliper brake. | |
| 5.1 | Remove banjo bolt (5), take off brake hose (3) and seal openings with suitable stop plugs. | When removing the brake hose (3) from the front axle with floating caliper brake. |
*BA42.10-P-1012-04B |
| Fig 1 | |||
| 5.2 | Remove brake hose (3) from brake line (7) at fixed caliper and seal openings with suitable stop plugs. | When removing the brake hose (3) from the front axle with fixed-caliper brake. |
*BA42.10-P-1011-04B |
| Fig 1 | |||
| 6.1 | Unscrew union nut (12.1) of brake line (12) from brake hose (10) and seal openings with suitable stop plugs. | When removing the brake hose (10) at the outer rear axle. Seal connections immediately. Otherwise damage can be caused by escaping brake fluid. |
*BA42.10-P-1010-04B |
| Fig 1 | |||
| 6.2 | Unscrew union nuts (12.2, 16.1) of brake lines (12, 16) from brake hose (15) and seal openings with suitable stop plugs. | When removing the brake hose (15) at the inner rear axle. Seal connections immediately. Otherwise damage can be caused by escaping brake fluid. |
*BA42.10-P-1010-04B |
| Fig 1 | |||
| 7.1 | Remove clamp (13). | When removing the brake hose (10) at the outer rear axle. If there is damage, ↓ replace retaining clamp. |
|
| 7.2 | Remove clamps (14, 17). | When removing the brake hose (15) at the inner rear axle. If there is damage, ↓ replace retaining clamps. |
|
| 8 | Remove banjo bolt (9), take off brake hose (10) and seal openings with suitable stop plugs. | When removing the brake hose (10) at the outer rear axle. |
*BA42.10-P-1012-04B |
| Fig 1 | |||
| 9 | Install in reverse order. | ||
| Bleeding | |||
| 10 | Bleed brake system. | AR42.10-P-0010XG |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA42.10-P-1010-04B | Union nut, brake line to connecting point | Nm | 14 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA42.10-P-1011-04B | Brake hose to brake line on front axle fixed caliper | Nm | 16 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 463 as of model year 2019 | |
|---|---|---|---|
| BA42.10-P-1012-04B | Bolt, brake hose to floating brake caliper on front axle/rear axle | Nm | 42 |
