(Replace Brake Hoses - AR42.10-P-0013GG)

Model 460, 461

Model 463 (except 463.270/271) up to model year 2013

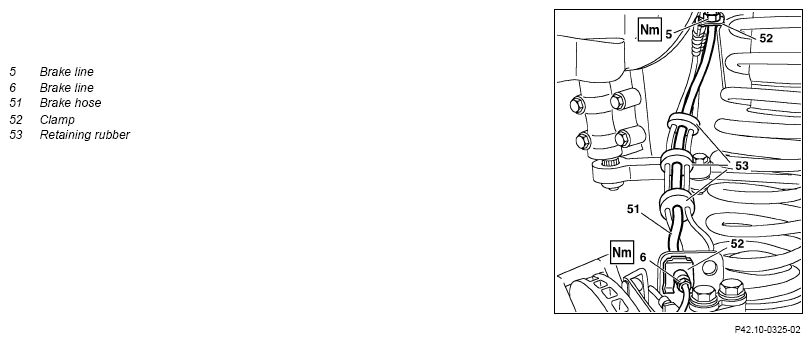

Shown here is the brake hose extension on the front axle

Courtesy of MERCEDES-BENZ USA

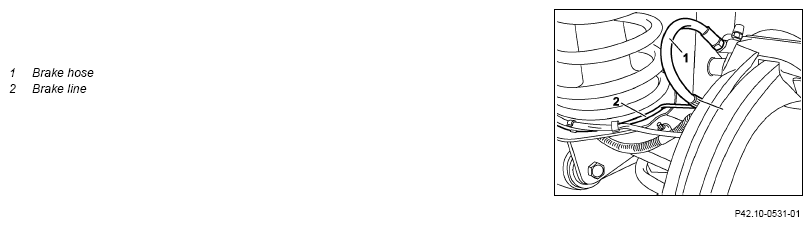

Shown here is the brake hose extension on the rear axle with disk brakes

Courtesy of MERCEDES-BENZ USA

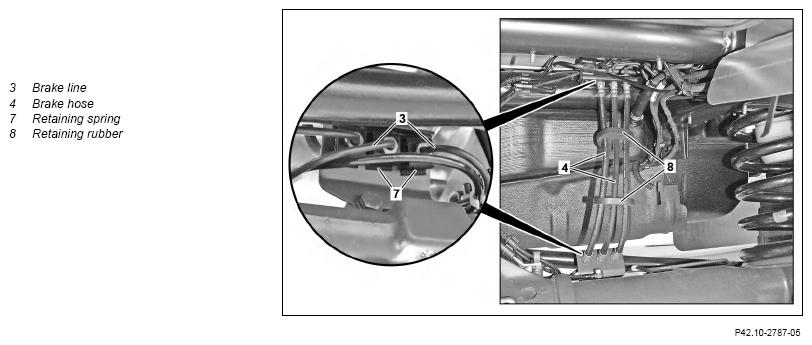

Shown here is the brake hose extension on the rear axle with drum brakes

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Raise vehicle with vehicle lift	Immediately seal all opened connections with stop plugs, the brake fluid reservoir must not run empty.	AR00.60-P-1000G
	On front axle
2	Detach brake lines (5, 6) from brake hose (51)	Model 460, 461 Model 463 (except 463.236/248/270/271/272/273) up to model year 2013 Model 463.236/248 up to model year 2013 except code 979 (Special protection MB Guard) Model 463.236/248 up to model year 2013 with code 979 (Special protection MB Guard) Model 463.272/273 up to model year 2013 Brake line to brake hose	BA42.10-P-1001-04B
		Model 460 Model 461 Model 463 (except 463.236/248/270/271/272/273) up to model year 2013 Model 463.236/248 up to model year 2013 except code 979 (Special protection MB Guard) Model 463.236/248 up to model year 2013 with code 979 (Special protection MB Guard) Model 463.272/273 up to model year 2013 Brake line to fixed brake caliper	BA42.10-P-1002-04B
		Box wrench bit	Fig 3
		Torque wrench	Fig 1
		Record plug	Fig 2
3	Pry off clamps (52)
4	Pull brake hose (51) out of rubber holders (53)
	On rear axle with disk brakes
5	Detach brake line (2) from brake hose (1)	Model 460, 461 Model 463 (except 463.236/248/270/271/272/273) up to model year 2013 Model 463.236/248 up to model year 2013 except code 979 (Special protection MB Guard) Model 463.236/248 up to model year 2013 with code 979 (Special protection MB Guard) Model 463.272/273 up to model year 2013 Brake line to brake hose	BA42.10-P-1001-04B
		Box wrench bit	Fig 3
		Torque wrench	Fig 1
6	Unscrew brake hose (1) from floating brake caliper	Model 460, 461 Model 463 (except 463.236/248/270/271/272/273) up to model year 2013 Model 463.236/248 up to model year 2013 except code 979 (Special protection MB Guard) Model 463.236/248 up to model year 2013 with code 979 (Special protection MB Guard) Model 463.272/273 up to model year 2013 Brake hose to rear axle floating caliper	BA42.10-P-1005-04B
	On rear axle with drum brakes
7	Detach upper and lower brake line (3) from brake hose (4)	Check that the retaining spring (7) is positioned correctly. Model 460, 461 Model 463 (except 463.236/248/270/271/272/273) up to model year 2013 Model 463.236/248 up to model year 2013 except code 979 (Special protection MB Guard) Model 463.236/248 up to model year 2013 with code 979 (Special protection MB Guard) Model 463.272/273 up to model year 2013 Brake line to brake hose	BA42.10-P-1001-04B
		Box wrench bit	Fig 3
		Torque wrench	Fig 1
8	Pull brake hose (4) out of rubber holders (8)
9	Install in the reverse order
10	Bleed brake system	Model 460, 461 Model 463 (except 463.270/271) up to model year 2013 except code 979 (Special protection MB Guard)	AR42.10-P-0010GG

Fig 1: Identifying Torque Wrench (001 589 75 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ USA
