(Removing And Installing Brake Fluid Reservoir - AR42.10-P-0301GG)
Model 460, 461
Model 463
up to model year 2013
except code 979 (Special protection MB Guard)
| Remove/install | |||
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| 1 | Open hood | Model 461 (except 461.339) Model 463 up to model year 2013 except code 979 (Special protection MB Guard) |
AR88.40-P-1000GG |

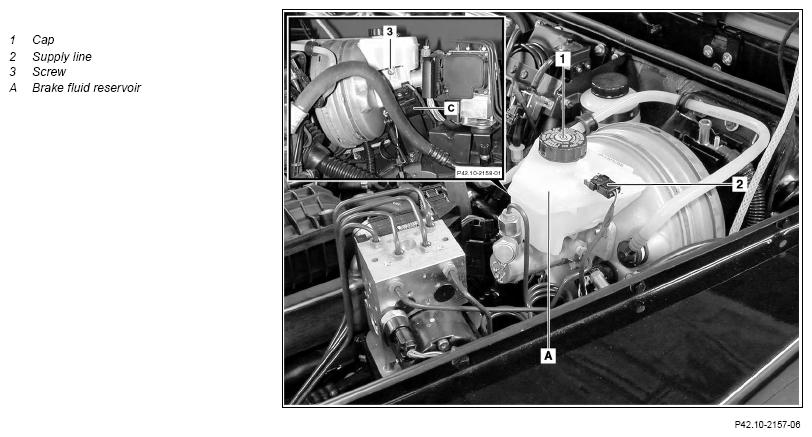

| 2 | Unscrew cap (1) | ||
| 3 | Remove filter screen from brake fluid reservoir (A) | ||
| 4 | Extract brake fluid from brake fluid reservoir (A) | ||
| 5 | Release and detach feed line (2) | ||
| 6 | Remove bolt (3) | If installed | |

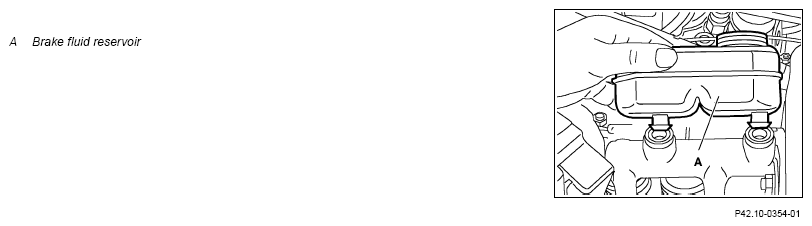

| 7 | Detach brake fluid reservoir (A) from master brake cylinder | Protect painted surfaces from brake fluid. Otherwise the paint can be damaged. |
|

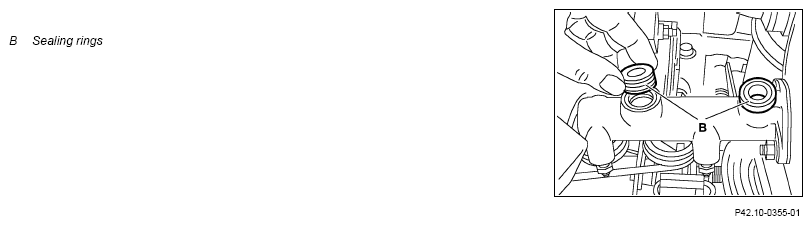

| 8 | Replace sealing rings (B) | ||
| 9 | Install in the reverse order | ||
| 10 | Fill with fresh brake fluid | ||
| AP42.50-P-4210G | |||
| 11 | Bleed brake system | Except model 463.270/271 | AR42.10-P-0010GG |
| Model 463.270/271 | AR42.10-P-0010GX |
