Remove/Install Rear Axle Brake Disc - AR42.10-P-0240GW

Model 463 (except 463.234/255/274)

as of model year 2013 up to model year 2019

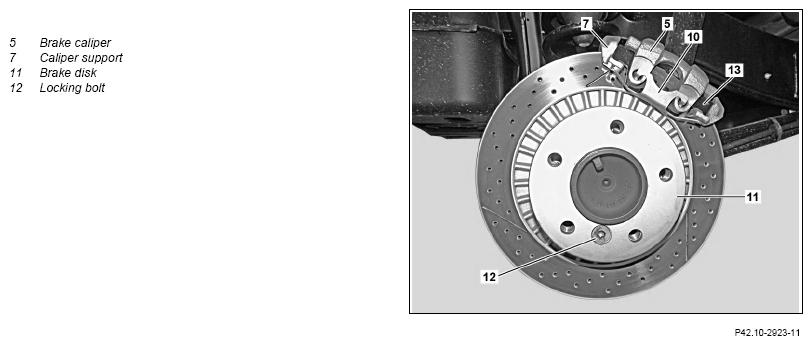

Fig 1: Rear Axle brake disc Components Location - Model 463 Up To Model Year 2019

G13668599

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove brake caliper (5) with brake caliper carrier (7)	Remove/install rear-axle brake caliper Model 463 (except 463.234/255/270/271/274) as of model year 2013 up to model year 2019	AR42.10-P-0080GW
		Remove/install rear-axle brake caliper Model 463.270/271 as of model year 2013 up to model year 2019	AR42.10-P-0080GX
2	Reset parking-brake brake shoes	Adjust parking brake	AR42.20-P-0540GW
3	Unscrew safety screw (12) and remove brake disc (11)	Always replace brake discs (11) in pairs. Lightly grease interference fit of brake disc (11). Replace safety screw (12).
		Safety screw, brake disc to wheel hub	*BA42.10-P-1001-06B
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
4	Install in the reverse order
5	Adjust parking brake	Adjust parking brake	AR42.20-P-0540GW
6	Hydraulic brake system - check fluid level, correct if necessary
	Check
7	Check function and effectiveness of brake system

brake discS, BRAKE COVER PLATE

Number	Designation		Model 463 up to model year 2019
BA42.10-P-1001-06B	Safety screw, brake disc to wheel hub	Nm	25

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DBL 6879.20	A 000 989 76 51
