Remove/Install Parking Brake Cable - AR42.20-P-0541GW

MODEL 463 as of model year 2013

/model refinement package 2012

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center console		AR68.20-P-2000GW
2	Remove air ducting and bracket from center console	Refer to remove transfer case control unit.	AR28.19-P-1003GW

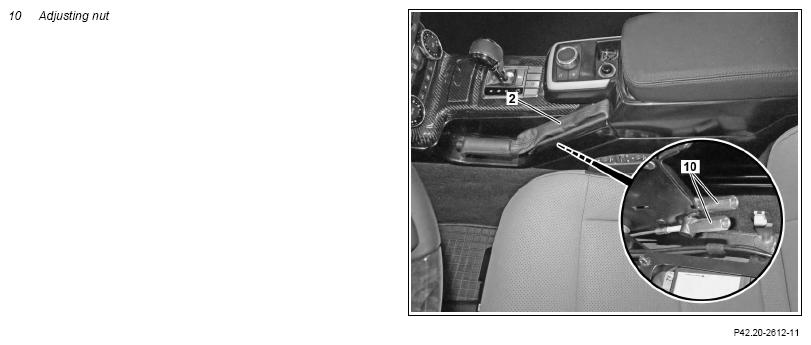

3	Unscrew adjusting nuts (10) from parking brake lever
4	Remove parking brake shoes		AR42.20-P-0530GW

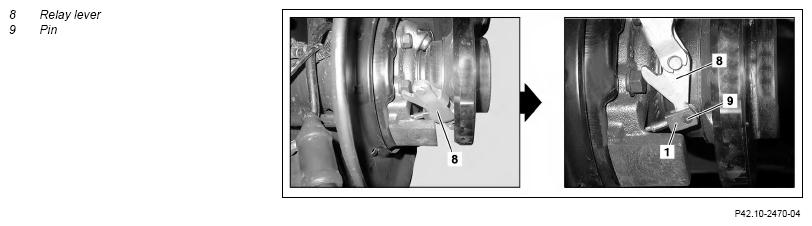

5	Remove relay lever (8) from parking brake cable (1)

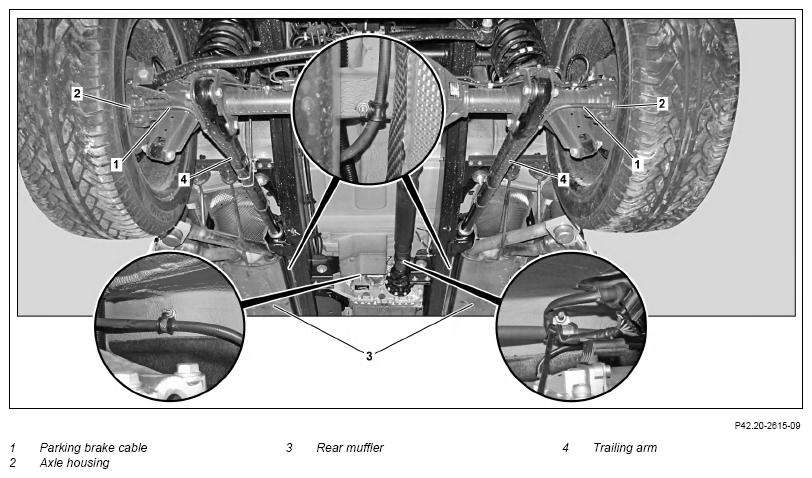

6	Remove parking brake cable (1) from axle housing (2)		*BA42.20-P-1002-01B
7	Remove both rear mufflers (3)		AR49.10-P-4951GW
8	Detach parking brake cable (1) from trailing arm (4) and vehicle underside	After fastening the parking brake cable (1) on the vehicle underside, apply underfloor protection to the threaded pins.	*BR00.45-Z-1002-05A
9	Pull parking brake cable (1) out of rubber grommet on vehicle underside	Note different lengths of parking brake cables (1).
10	Install in the reverse order	Fasten the wheels using four wheel bolts only, as the brake shoes of the parking brake still need to be adjusted. Do not tighten the wheel bolts yet.
11	Adjust parking brake		AR42.20-P-0540GW
12	Check parking brake on roller dynamometer and adjust if necessary		AR42.20-P-0550GW
